SS Conical Line Strainers

Product Code: 1655
Category:Cone Filter&Strainer
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel filter
Application:Filtration,fuel Filter,Hydraulic Filter,Petroleum, chemical, food, environmental protection, heavy machinery, film, medicine, water treatment, high te

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of SS Conical Line Strainers


Main filter media of cone filters is stainless steel weaving wire cloth and multiple layers sintered wire mesh. On the basis of features and advantage of disc filter, cone filter increases filter area and easily discharges the material. The size is available at the customers’ request.


Usages for Conical Line Strainers:



Pressure filters for fine filtration in hydraulic steering equipment;Oil and fuel filters
ressure and vacuum filters (disc, cell and drum filters);As porous media for fluidised beds;Pre-coat filters;Filter candles;Protection of steering and fuel injection nozzles
Insulation / sound attenuation (e.g. aircraft engines);In the following industrial sectors;Air and space travel;Automotive industry;Petrochemicals;Chemical and pharmaceutical;industry/Biotechnology;Medical science;Food and beverage industry;Plastics industry;Environmental technology



Advantages for Conical Line Strainers:


1) Strength: As fourth and fifth layers do support, with high mechanical strength and compressive strength.

2) Easy to clean: As a result of surface of the filter material, having means for cleaning characteristics, especially suitable for backwashing.

3) Easy processing: suitable for cutting, bending, stamping, drawing, welding and other processes.

4) High temperature: 480 °Ccan withstand high temperatures.

5) Corrosion resistance: As a result of SUS316L, 304 materials, the corrosion resistance.

6) Filtration: Filtration range of 2μm-200μm, has a reliable filter performance.

7) Stability: Because there are two layers to do to protect the screen, plus solid melting diffusion sintering process which make filters is not easily to deform.

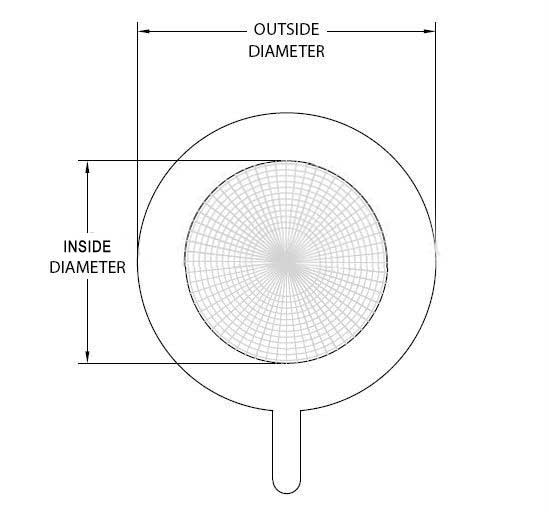

CONICAL LINE STRAINERS

Specification of the SS Conical Line Strainers



flange size (inch )
pipe size
inside diameter
outside diameter (class 150-1500)
500/300
300
600
900
1500
3/4
5/8
2-1/8
2-1/2
2-1/2
2-5/8
2-5/8
1
3/4
2-1/2
2-3/4
2-3/4
3
3
1-1/2
1-1/4
3-1/4
3-5/8
3-5/8
3-3/4
3-3/4
2
1-3/4
4
4-1/4
4-1/4
5-1/2
5-1/2
2-1/2
2-1/4
4-3/4
5
5
6-3/8
6-3/8
3
2-3/4
5-1/4
5-3/4
5-3/4
6-1/2
6-3/4
4
3-3/4
6-3/4
7
7-1/2
8
8-1/8
5
4-5/8
7-5/8
8-1/4
9-3/8
9-5/8
9-7/8
6
5-1/2
8-5/8
9-3/4
10-3/8
11-1/4
11
8
7-3/8
10-7/8
12
12-1/2
14
13-3/4
10
9-3/8
13-1/4
14-1/8
15-5/8
17
17
12
11
16
16-1/2
17-7/8
19-1/2
20-3/8
14
12-1/4
17-3/8
18-7/8
19
20-3/8
22-5/8
16
14
20-1/8
21
21-7/8
22-1/2
25-1/8
18
15-3/4
21-1/4
23
23-3/4
25
27-5/8
20
17-1/2
23-1/2
25-1/2
26-5/8
27-3/8
29-5/8
24
21-1/4
27-7/8
30-1/4
30-7/8
32-7/8
35-3/8
30
27-1/4
34-3/8
37-1/8
37-7/8
39-3/8
-
36
33
40-7/8
43-5/8
44-1/8
46-7/8
-

Production And Sales of SS Conical Line Strainers


Package: in wood case

Delivery Time: 5-25 days
