Reusable Sintered Metal Mesh Filter

Product Code: 2298
Category:Cylinder Filter
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:cylinder filter
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: zhaozhao
Email:sales@ubooem.com

Description of Reusable Sintered Metal Mesh Filter


Reusable Sintered Metal Mesh Filter is made of Sintered 5-layer or multi-layer Stainless steel wire mesh laminates, it take the advantages of good permeability, high holding dirty capacity, large filter area, long service life, high temperature resistance and corrosion resistance, and cleanable, can be used for many times, it is widely applied in the filtration system of petroleum and chemical industry.


Application for Reusable Sintered Metal Mesh Filter:


It can be used for filtering gas, liquid, and fuel oil. It is widely applied in petroleum, chemical, tractor, airplane and ship industries, and also applied as the filter element of pneumatic and hydraulic circuit.


Advantage for Reusable Sintered Metal Mesh Filter:


1) High strength and rigidity : extreme mechanical strength and pressure tolerance, can be machined, welded and assembled,

2) Uniform and stable precision: consistent filter property in various media, without apertures changing during operation.

3) Widely service environment: can be continuously in temperature ranging from-200°C to 600°C and filtering in acid and alkali conditions.

4) Cleanable: backwash easily, and reused with longer service span, and can be cleaned by means of ways, such as backstream, filtration liquid, ultrasonic, dissolution and baking.

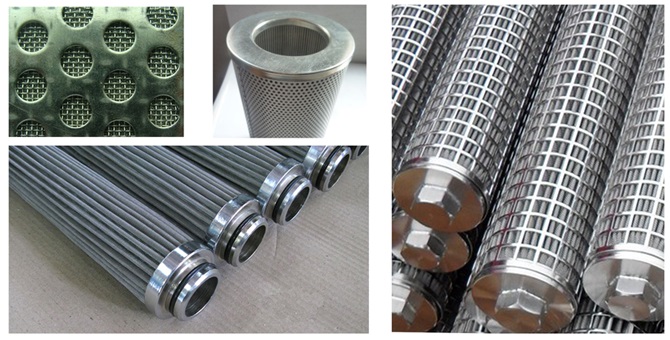

Reusable Sintered Metal Mesh Filter

Specification of the Reusable Sintered Metal Mesh Filter


Reusable Sintered Metal Mesh Filter

Length (mm)

Diameter (mm)

Filtration  area  (m²)

Accuracy (µm)

Media

35~1500
15~120
0.01~0.2

2~200µm

SS wire mesh Stainless steel sheet

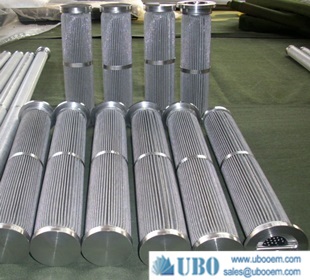

Production And Sales of Reusable Sintered Metal Mesh Filter


Reusable Sintered Metal Mesh Filter
