Pleated Wire Mesh Filter Strainer

Product Code: 2313
Category:Filter Strainer
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:filter strainer
Application:omplex structure, high filtering precision, large dirt holding capacity

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Pleated Wire Mesh Filter Strainer


Main filter media of pleated filter elements are stainless steel sintered fiber felt and stainless steel wire mesh.

Stainless steel sintered fiber felt is a kind of multiple deep filter media,sintered with stainless steel fiber at the high temperature. The filter element enjoy the advantage of high porosity,large filter area and good dirt holding capacity,and can repeated use after chemical cleaning,etc. Stainless steel wire mesh is weaved with stainless steel wire. These filter elements have such characteristics of good strength,fastness, easy cleaning,high temperature resistance,low cost,etc. Filter rating range from 3 to 200 microns are available,the sizes is available at customer's requirement.

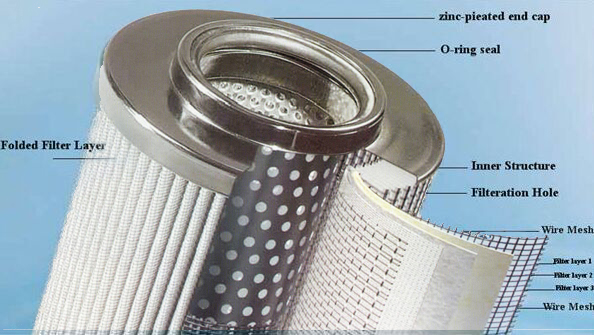

Pleated wire mesh filter strainer


Applications for Pleated Wire Mesh Filter Strainer:


It is widely used in chemical fiber, petroleum, chemical industry, electric power, pharmaceutics, machinery, metallurgy, ceramics, dispose of sewage, foodstuff and beverage, cosmetic etc.


Features for Pleated wire mesh filter strainer:


-- Good Gas Permeability.
-- Good Resistance to Corrosion, Heat, and Abrasion.
-- Good Chemical Resistance.
-- The pleated mesh filter cartridge enjoys the features of high-pressure, high temperature and chemical corrosion      resistance. It also has good air permeability, high dirt holding capacity and long-life service time, can repeat use by clean


Advantage for Pleated wire mesh filter strainer:


-- Good air permeability;

-- Excellent corrosion, heat, pressure and abrasion resistance;

-- High tension;

-- Uniform distribution pores realize accurate filtering;

-- Enlarged flow rate per unit area;

-- Excellent machining property;

-- Reusable after cleaning;


http://www.ubowedgewire.com/Wedge_Wire_Screen/Continous-slot-screen-tube-for-industry-650-1.htm

Specification of the Pleated Wire Mesh Filter Strainer


Pleated wire mesh filter strainer

Mesh/Inch Wire Diameter(mm) Screen Thickness(mm)
105 0.075 0.14
120 0.08 0.15
150 0.06 0.115
165 0.05 0.095
180 0.045 0.085
200 0.04 0.1
230 0.036 0.085
250 0.036 0.088
270 0.035 0.083
300 0.03 0.07
325 0.028 0.065
350 0.03 0.06
400 0.023 0.040
450 0.023 0.042

Production And Sales of Pleated Wire Mesh Filter Strainer


Pleated wire mesh filter strainer
