Metal Mesh Filter Cartridge

Product Code: 2347
Category:Cylinder Filter
Material:low carbon steel, stainless steel
Properties:stainless steel filter
Application:mainly used for the filtration of air, the medium cleaning

Email to Us Start Order


Author: zhaozhao
Email:sales@ubooem.com

Description of Metal Mesh Filter Cartridge

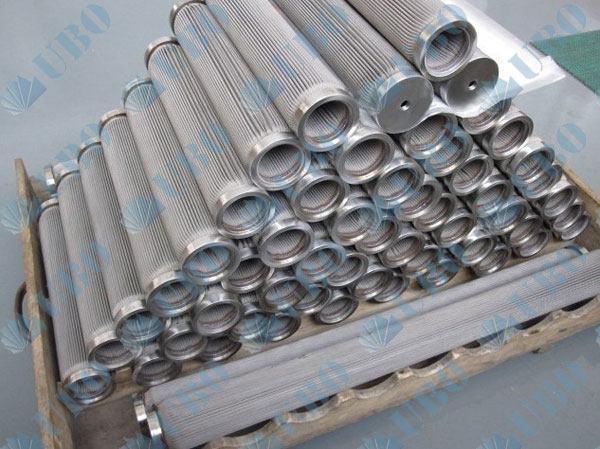

Metal mesh filter cartridge
Material: iron wire, galvanized wire, black wire
Filtration precision: 2-150 micron
Structure: flake, Cartridge, tube, tubular shape, the goblet, bowl, plate, tapered, T shape, Cap shape, cylindrical clavier, Housing
Features of the metal mesh filter cartridge:
High-pressure, high temperature and chemical corrosion resistance, good air permeability, high dirt holding capacity and long-life service time, can repeat use by clean
Applications of the metal mesh filter cartridge:
Metal mesh filter cartridge is mainly used for the filtration of air, the medium cleaning and flow control of lubrication oil, hydraulic pressure and air pressure system.

Ubo is specialized in producing and distributing stainless steel filter elements,filter element, filter disc, sintered  filter,filter strainer,polymeric filter,basket filter, wire mesh filter,wedge wire screen.

Specification of the Metal Mesh Filter Cartridge


Model

D

L(mm)

RLXA

3/4-16UNF

424

RLXB

3/4-16UNF

485

RLXB1

3/4-10UNF

485

RLXB2

M20×1.5

485



Model

D(mm)

d(mm)

H(mm)

RLXR

ø304.8

ø85

6.5

RLXS

ø304.8

ø63.5

6.5

RLX

ø250

ø85

6.5

RLX

ø177.8

ø47.5

7.7

Production And Sales of Metal Mesh Filter Cartridge


Package: in wood case

Delivery Time: 5-25 days
