Double-cone Strainer

Product Code: 2095
Category:Cone Filter&Strainer
Material:Stainless steel 302,304,304L,316,316L
Properties:cone filter&strainer
Application:filtration,chemical industry, metallurgy, aviation, electronics, power, pharmaceutical, environmental protection, atomic energy

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Double-cone Strainer


Specifically designed for the filtration of debris, in the protection of fluid and gas handling equipment during the commissioning and start up periods.

The strainers are easily installed between flange without any modification to the surrounding pipework and without the need for special spool pieces.With its robust design these strainers are constructed to work at high differential pressures.Temporary strainers are clearly seen to be in position by virtue of their signal arms, elongated for easy identification.The flow passes from inside to out, collecting debris in the cage facilitating removal. If required strainers can be manufactured for reverse flow


Application for Double-cone Strainer:


-- Chemical products

-- Foodstuffs and spices (milk powder, coffee, tea, rice, grains)

-- Stones and powders (minerals, diamond sizing, ores, alumina)

-- Pharmaceutical products

-- Boards and fixing plates (dividing shavings and wadding)

-- Paper (sieving wood shavings, preparation of coatings)

-- Metal powders (Precision sieving of metal powders)

-- Rubber

-- Animal feedstuffs (dedusting pellets, sieving crumbs, molasses based foodstuffs)

-- Fertilisers (phosphates, potash, urea, mixed fertilisers)

-- Sugar and salt (sizing)


Features for Double-cone Strainer:


Stainless steel filter cartridge used new technic ,their feature durable structure,Anti-corrosion,acid,alkali resistance,High density,precision filter rating,Easy to clean,long work time

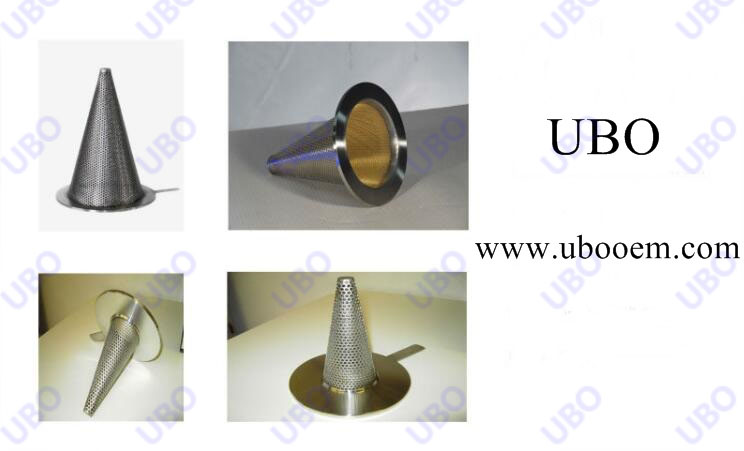

double-cone strainer

Specification of the Double-cone Strainer

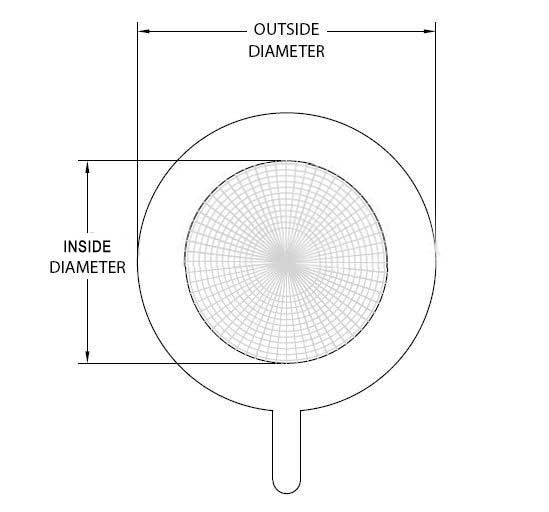

double-cone strainer



150 LB.

Pipe
Size

Inches

Wall

L

W

D

BT-F

BT-TEE

C-F

C-Q

2"

.154

5 7/8

1 15/16

1 1/4

10

5

5 3/4

O

2 1/2"

.203

6 13/16

2 5/16

1 7/16

11 1/2

6

6 5/8

N

3"

.216

7 1/2

2 15/16

1 3/4

12 1/4

6 3/4

7 1/16





3 1/2"

.226

8 3/16

3 7/16

2

13 1/8

7 1/2

7 1/2

A

4"

.237

9

3 7/8

2 1/4

14 1/4

8 1/4

8 1/16

P

5"

.258

10 3/4

5

2 7/8

16 3/4

9 3/4

8 5/16

P

6"

.280

12

5 15/16

3 3/8

18 1/4

11 1/4

9 1/8

L

8"

.322

14 7/8

7 13/16

4 5/16

22

14

12 1/8

I

10"

.365

17 3/8

9 7/8

5 3/8

25

17

13 11/16

C

12"

.406

20 5/16

11 3/16

6 5/16

29

20

15 3/4

A

14"

.375

22 1/2

13 1/8

7 1/8

32

22

17 3/8

T

16"

.375

24 1/2

15 1/8

8 1/8

34

24

18 7/8

I

18"

.312

27 9/16

17 1/4

9 3/16

38

27

20 9/16

O

20"

.375

30 3/16

19 1/8

10 1/8

41

30

22 3/8

N




Production And Sales of Double-cone Strainer


Package: in wood case

Delivery Time:5-25 days.
