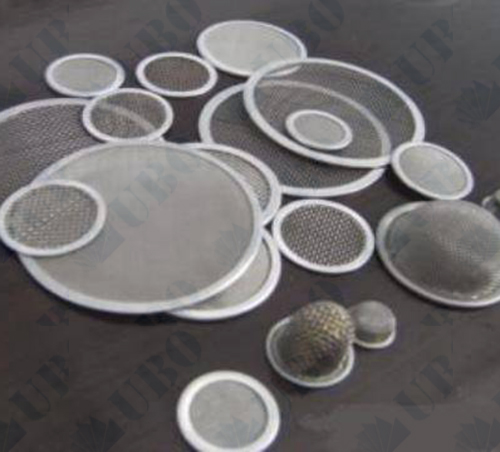

circular leaf filters

Product Code: 1784
Category:Leaf Filters
Material:stainless steel wire mesh
Properties:Filter disc
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of circular leaf filters

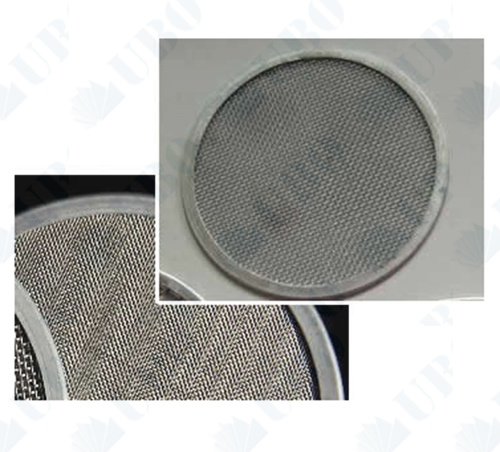

The metal fiber disc consists of filter disc and strainer, mainly used to filter impurities from spinning dope, which exist in front side of spinneret of spindle, for synthetic fiber and artificial fiber in chemical fiber industries, in order to make sure unblock spinneret holes, improve spinning dope purity, and guarantee spinning quality.
The metal fiber disc is mainly used to filter biaxial oriented polyethylene terephthalate (BOPET) during production. These disc filters have excellent structure, high strength and lower resistance performance.

circular leaf filters

Application for circular leaf filters:

The filter has been widely used in transfomer oil, turbine oil, hydraulic oil, aviation kerosene, petrolum, chemical, power plant, coal carbon, mining, pharmaceutical, food and engineering industries.

Characteristics for circular leaf filters:

Made by stretching and drawing through moulds, the product is characterized by acid-alkali resistance, high tensile strength, intercrystalline corrosion resistance, smooth surface and bright color.

Performance for circular leaf filters:

Acid resistance, alkaline resistance, high temperature resistance, strong tension, and good abrasion resistance.

circular leaf filters

Specification of the circular leaf filters


Mesh
Wire Diameter
Micron Absolute
Micron Nominal
12*64
.023/.0165
270~290
200
14*88
.020/.013
220~240
150
24*110
.015/.010
115~123
80
50*250
.0055/.0045
56~63
40
40*200
.007/.0055
70~75
55
80*400
.0049/.0028
40~45
35

Note: We can design and fabricate according to customer requirements

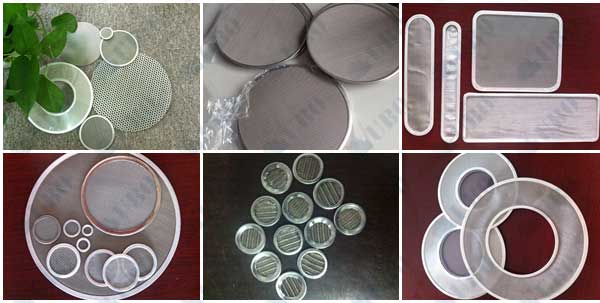

Production And Sales of circular leaf filters
