Screen Support Grids

Product Code: 2808
Category:Lauter Tun Screen
Material:Stainless steel 316L
Properties:Wedge Wire Screen
Application:petroleum,chemical,water,plastics,food,water filtration,liquid filtration,industry filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Screen Support Grids


Screen Support Grids is popularly used in making of water well screen. water well screen is made up of supporting rods and wire screening strips. The supporting rod can be round wire, triangular wire or trapezoid wire. The screening filter is made of triangular wire (V-shaped wire).

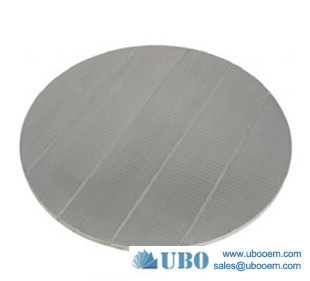

Screen Support Grids

Usages for Screen Support Grids:

tis screen panel is used in the field of sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation; filtration of oils, greases, paints, food products, fuels, liquid cooling agents, chemicals etc.

Characteristic for Screen Support Grids:

1.)wedge wire screen style isn't easy to be locked
2.)due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.)we are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) we have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles

Features for Screen Support Grids:

1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

Specification of the Screen Support Grids

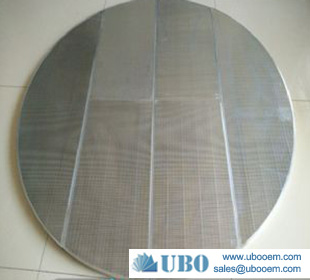

Screen Support Grids


Specification
(Profile wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30


Specification (support rods):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm


Note: other wires and rods can be customed according to your requests


Slot size

0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also

achieved upon request.


Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)


Length

Lengths up to 6 meters.


Diameter

ranging from 25mm to 800mm.


End connection

Plain beveled ends for butt welding or threaded
