Filtration Leaf Filter

Product Code: 1790
Category:Leaf Filters
Material:stainless steel wire mesh
Properties:Filter disc
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

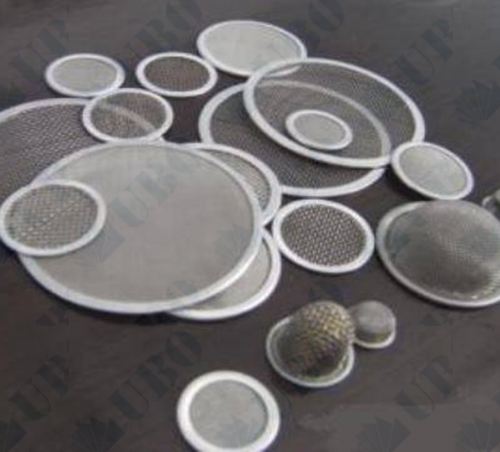

Description of Filtration Leaf Filter


The Filtration Leaf Filter consists of filter disc and strainer, mainly used to filter impurities from spinning dope, which exist in front side of spinneret of spindle, for synthetic fiber and artificial fiber in chemical fiber industries, in order to make sure unblock spinneret holes, improve spinning dope purity, and guarantee spinning quality.

The Filtration Leaf Filter is mainly used to filter biaxial oriented polyethylene terephthalate (BOPET) during production. These disc filters have excellent structure, high strength and lower resistance performance.

Filtration Leaf Filter
Characteristic of Filtration Leaf Filter

Filter Precision: 2~300um

Heat Resistance: -200°c ~~650°c continous filtration

Cleaning: back-washing, easy cleaning.

Specification:Dia:53mm,70mm,90mm,120mm,160mm,

mesh:50-400 per inch


Application of Filtration Leaf Filter

1. Decentralied &Cooling Material for Higher Ambient Temperature

2.Gas Distrbution Material

3.High Temperature Filtration Material

we can design special dimension according to customer demands

Specification of the Filtration Leaf Filter


Mesh
Wire Diameter
Micron Absolute
Micron Nominal
12*64
.023/.0165
270~290
200
14*88
.020/.013
220~240
150
24*110
.015/.010
115~123
80
50*250
.0055/.0045
56~63
40
40*200
.007/.0055
70~75
55
80*400
.0049/.0028
40~45
35

Note: We can design and fabricate according to customer requirements

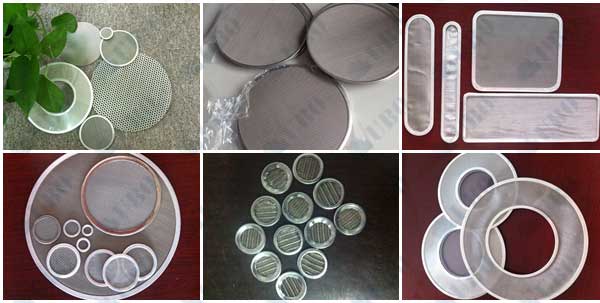

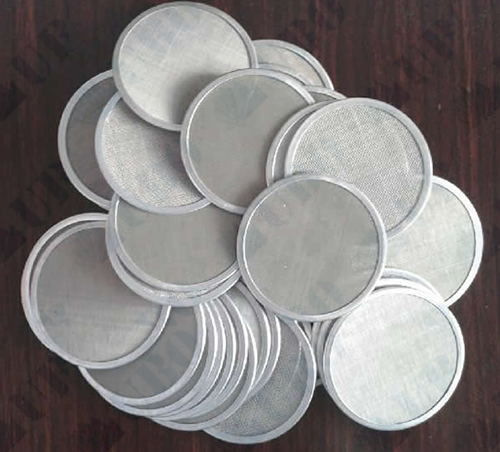

Production And Sales of Filtration Leaf Filter


Filtration Leaf FilterFiltration Leaf Filter
