sintered wire mesh filter

Product Code: 2167
Category:Sintered Metal Mesh Filter
Material:Stainless steel 316L
Properties:sintered metal mesh filter
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of sintered wire mesh filter


The sintered wire mesh filter has high-pressure, high temperature and chemical corrosion resistance, it also has good air permeability, high dirty holding capacity and long-life service time, can repeat use by clean, is the ideal filter element for petroleum, chemical and synthetic fiber industries.
sintered wire mesh filter

sintered wire mesh filter Characteristic:

Standard sintered mesh structures consist of protection layer, precision control layer, disperse layer and multi-layer reinforced layer.
After high strength metal mesh sintering, have highest mechanical strength and anti-pressure strength.
As adopt surface filter structure of best backwash cleanness effect, easy to clean.

sintered wire mesh filter Application:

All kinds of high temperature, catalyst , corrosive liquid filtration for petrochemical industry.
All kinds of melt polymer filtration in chemical fiber film fields
high pressure backwashing oil purifier
All kinds of catalyst filtering separation for Pharmaceutical Industry
Gas distribution, liquid Bed orifice plate material

sintered wire mesh filter Introductions:

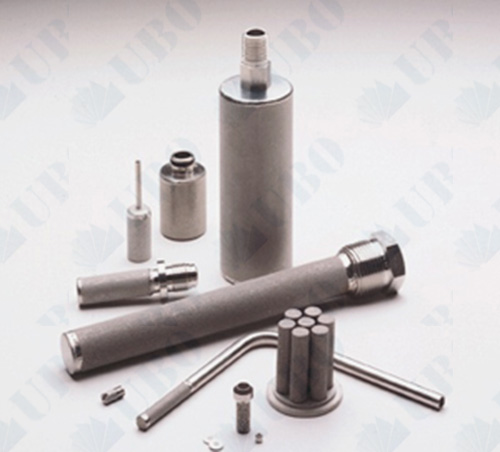

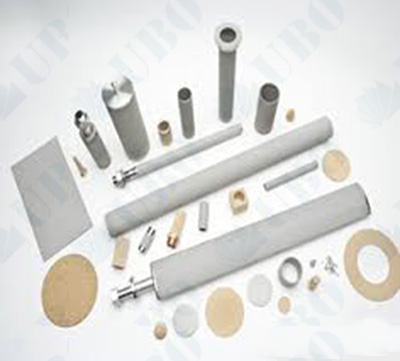

1. Stainless Steel Sint red Metal Mesh Filter is made of five or multiple layers sintered metal wire mesh.
2. Stainless Steel Sintered Metal Mesh Filter keeps high corrosion resistance, good air permeability,high strength,high filtration precision.
3. Stainless Steel Sintered Metal Mesh Filter is easy to wash.

Specification of the sintered wire mesh filter


Mesh/Inch Wire Diameter(mm) Aperture (mm) Filtration Area% Mesh/Inch Wire Diameter(mm) Aperture
(mm)
Filtration Area%
5 1.00 4.08 64 100 0.11 0.144 32
6 0.90 3.33 62 120 0.09 0.122 33
8 0.70 2.47 61 150 0.065 0.104 38
10 0.50 2.04 64 200 0.05 0.077 37
12 0.50 1.62 59 200 0.04 0.084 47
14 0.50 0.50 52 250 0.04 0.062 37
16 0.35 1.24 61 250 0.035 0.067 43
18 0.28 1.13 64 250 0.03 0.072 50
20 0.35 0.92 52 300 0.04 0.045 28
24 0.35 0.71 45 300 0.03 0.055 42
28 0.35 0.56 38 325 0.035 0.043 30

Production And Sales of sintered wire mesh filter


sintered wire mesh filtersintered wire mesh filter
