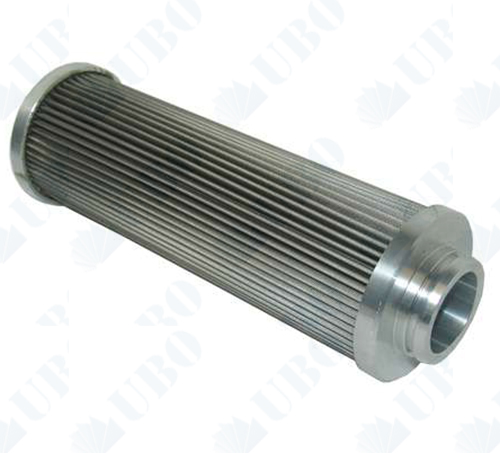

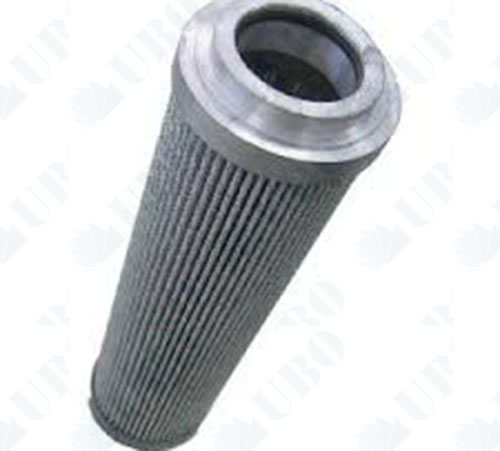

candle filter for PE filtration

Product Code: 2140
Category:Metal Sintered Filter Elements
Material:Stainless steel 316L
Properties:metal felt filter elements
Application:Filter (chemistry),Oil filter,Water Filter

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of candle filter for PE filtration


candle filter for PE filtration is sintered by a kind of two or more layers of plain weave which are crossed and stacked together through sintering, pressing, rolling and other processes .it has a uniform mesh, breathable performance stable. It is mainly used in the fluidized bed, powder conveying, silencer, drying, cooling and other fields.

candle filter for PE filtration

Applications for candle filter for PE filtration:

(1) Used in extremely high temperatures doing dispersion and cooling.
(2) Used for the purpose is to make gas evenly in the powder industry and the application of fluidization plates in steel industry.
(3) Used for gas distribution in the fluidized bed
(4) Used to send blast furnace pulverized coal stream is to make it fluidized and conveyed densely in the systems.
(5) Used in the pharmaceutical industry, washed and dried.
(6) Used in the catalyst support across the grid
(7) Used in filtering about polyester, oil, food and beverage, chemical fiber products, also used in water treatment and filtration of gases.

Feature for candle filter for PE filtration:

*Stable pore shapes
*High permeability
*Low pressure drop
*High dirt-holding capacity (longer lifetime)
*High temperature resistance
*High differential pressure with stand capacity
*Strong corrosion resistant
*Back flushing
*Excellent mechanical strength
*No media migration
*Size customization
*Various specifications are available as request.

Specification of the candle filter for PE filtration


type
Nominal accuracy(um)
Gas Accuracy(L/min·dm2·1000pa)
Bubble Pressure (pa)
MSW1
1
180
5300~6000
MSW2
2
240
4300~5000
MSW5
5
260
3000~3700
MSW10
10
310
2700~3300
MSW15
15
350
2000~2600
MSW20
20
450
1800~2300
MSW25
25
620
1400~1900
MSW30
30
690
1200~1700
MSW40
40
420
1000~1500
MSW50
50
850
900~1200
MSW70
70
900
700~1100
MSW100
100
1080
650~1000
MSW150
150
2600
500~800
MSW200
200
2800
450~600

Production And Sales of candle filter for PE filtration
