Stainless steel sintered filter disc

Product Code: 1692
Category:Sintered Metal Mesh Filter
Material:Stainless Steel sintered mesh
Properties:Sintered filter
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Stainless steel sintered filter disc


It is made of Sintered 5-layer or multi-layer Stainless steel wire mesh laminates, it take the advantages of good permeability, high holding dirty capacity, large filter area, long service life, high temperature resistance and corrosion resistance, and cleanable, can be used for many times, it is widely applied in the filtration system of petroleum and chemical industry.

Filter Media
1. Leer Multilayer Sintered Mesh
2. Leer Sintered Metal Fiber Felt
3. Leer FeCrAl Sintered Fiber Felt
4. Leer Stainless Steel Powder
5. Leer Spherical Bronze Powder

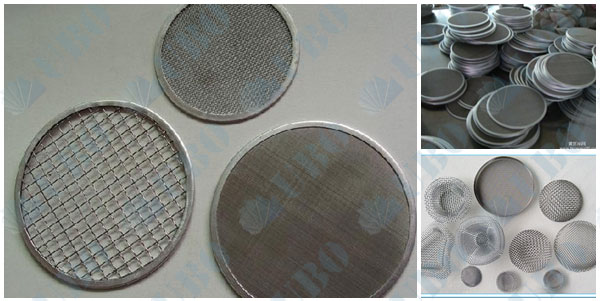

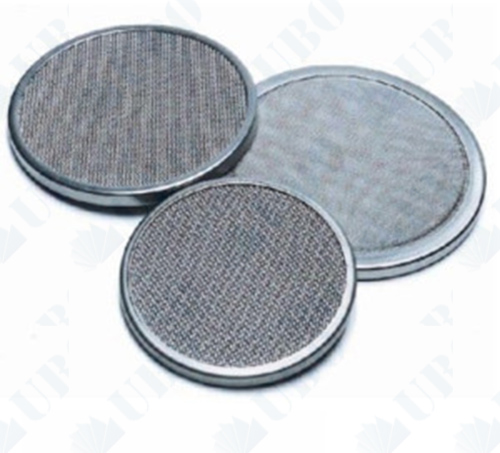

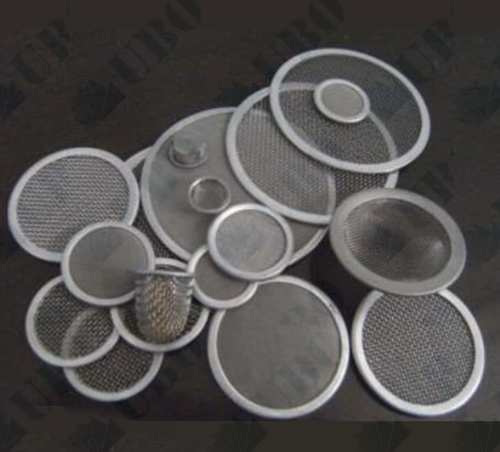

Stainless steel sintered filter disc
Application for Stainless steel sintered filter disc:

Wire mesh filter disc is mainly used in distillation, absorption, evaporation and filtration process of rubber, plastic industry, the screening of grain and oil, petroleum, chemical industry, light industry, medicine, metallurgy, machinery, shipbuilding and other industries. Wire mesh filter disc also can be used as air filter for car.


Characteristics for Stainless steel sintered filter disc:

The benefits of filter disc is high quality and filtration capacity, precise fitting filter elements, optimum cost-performance ratio, constant quality control during production etc. It is widely used in melt filtration.

Work environment for Stainless steel sintered filter disc:

Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, hydrogen, nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen, gas, carbon dioxide gas environment

Specification of the Stainless steel sintered filter disc


Porosity:40%(max)
Aperture:2.5-160μm
Filtration precision:0.2μm-80μm
Filtration Efficiency:98% filtration accuracy under:0.1 - 80um
Compressive Strength:3.0Mpa/cm2

Filtering
Level
Filtration
Precision
um
Maximum
Hole
Diameter um
Permeability
M3/h.㎡.kpa

Thickness
mm
Compression
Strength
Mpa/cm2
S9 0.2 2.5 1.5 3 3.0
S8 0.5 4 3 3 3.0
S7 1.5 6 5 3 3.0
S6 2.5 10 15 3 3.0
S5 5 15 40 3 3.0
8 20 80 3 3.0
S4 10 30 120 3 3.0
S3
28
60 250 3
3.0
35 80 500 3 3.0
S2 40 100 800 3 3.0
S1 65 160 1000 3 3.0

Production And Sales of Stainless steel sintered filter disc


Stainless steel sintered filter discStainless steel sintered filter disc
