Stainless Steel Oil Filter Cartridge

Product Code: 2584
Category:Metal Sintered Filter Elements
Material:304SS and 316SS
Properties:sintered filter
Application:High differential pressure

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Stainless Steel Oil Filter Cartridge

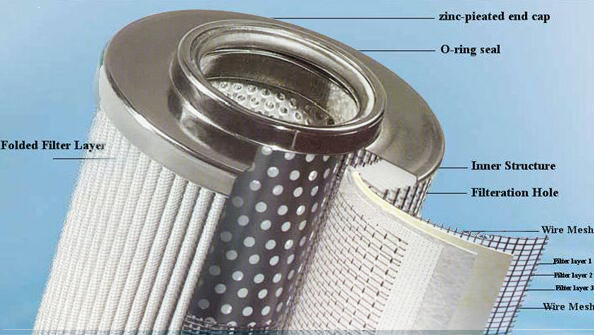

Stainless steel cylinder filter element is available by variety of styles to satisfy customer requirements. We design it according to micron rating, differential pressure, product characteristics, on stream life requirements, disposability, and cleaning method. The filter media included metal fiber felt, muti-layer metal mesh, metal wire mesh, and others. It can be provided as a flat wrap for making cylindrical filters elements or pleated for making pleated filter elements.



Applications for Stainless Steel Oil Filter Cartridge:



The filter has been widely used in transformer oil, hydraulic oil, aviation kerosene, petroleum, chemical, power plant, cost carbon, mining, pharmaceutical, food and engineering industries.



Advantages for Stainless Steel Oil Filter Cartridge:



1) Certificated under ISO9001&TS16949 Quality system;

2) The imported raw material insures the high performance and high quality;

3) Apply for heavy engine, such as generators, trucks, excavators, construction machine etc;

4) High strength, excellent ability of compress;

5) Uniform structure, porosity, permeability, low resistance, good filtering;

6) Good resistance of high or low temperature;

7) Good resistance of corrosion;

8) High quality and useful products different size and made by your need;

9) Packaging detail : polybag and cartons outside;

10) Competitive price to guarantee your margin and profit in local market;

11)  Rich experience in OEM, ODM.


Technical Specification for Stainless steel Oil Filter Cartridge:

1) Filter rating from 0.1micron to 300micron

2) Working temperature : -20~600

3) Inside dia.14.5mm~300mm, length:50 to 1500mm

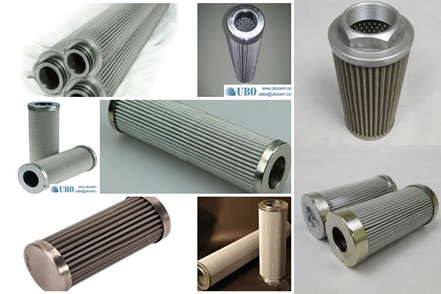

Stainless steel indufil oil filter cartridge


Specification of the Stainless Steel Oil Filter Cartridge


Stainless steel indufil oil filter cartridge

Series O.D Length Thread L1 L2 L3 N D1 D2 C d
D variation L variation
TLX1-25B 25.4 ± 1.0< 500 ± 2.0 R1
R
R2
65 17.3 12.7 25 19.2 36.6 30 8
TLX1-25C 750 ± 3.0
TLX1-25D 1000 ± 3.0
TLX1-25E 1500 ± 4.0
TLX1-30B 30 ± 1.0 500 plusmn; 2.0 65 22 15 25 23 42.2
TLX1-30C 750 ± 3.0
TLX1-30D 1000 ±3.0
TLX1-30E 1500 ± 4.0
TLX1-50B 50 ± 1.2 500 ± 2.0 65 26 20 42 42 59.9
TLX1-50C 750 ± 3.0
TLX1-50D 1000 ± 3.0
TLX1-50E 1500 ±4.0
Any size available according to customer’s requirement

Production And Sales of Stainless Steel Oil Filter Cartridge


Packaging Details: Cardboard tube or vacuum

Delivery Detail: About 20-30 days after receiving the order
