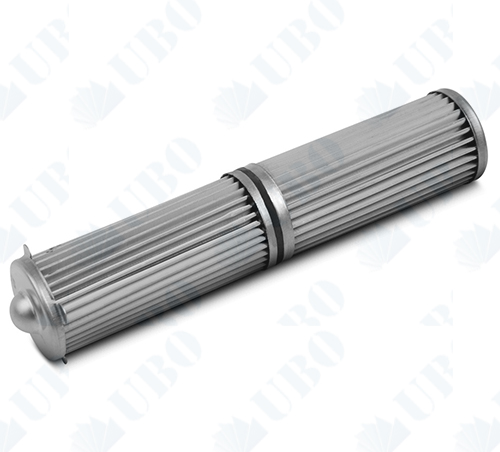

Sintered Wire cloth filter

Product Code: 1687
Category:Sintered Metal Mesh Filter
Material:Stainless Steel sintered mesh
Properties:Sintered filter
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Sintered Wire cloth filter


1.Stainless steel sintered wire mesh material
2.High temperature filtering
3.High pressure filtering
4.Rate:1-300um

Sintered Wire cloth filter is made of Sintered 5-layer or multi-layer stainless steel wire mesh laminates, it take the advantages of good permeability, high holding dirty capacity, large filter area, long service life, high temperature resistance and corrosion resistance, and cleanable, can be used for many times, it is widely applied in the filtration system of petroleum and chemical industry.

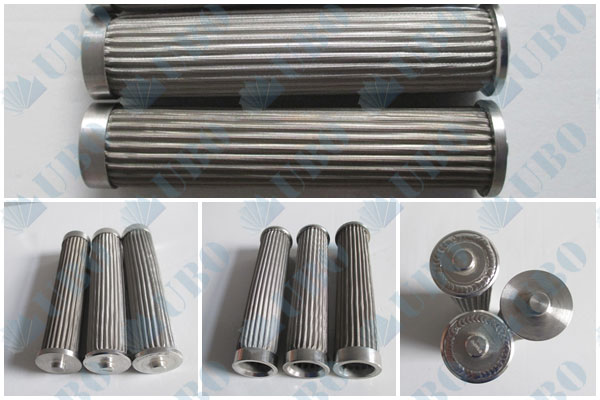

Sintered Wire cloth filter

Sintered Wire cloth filter Main Connection:

1.Standard(e.g.222, 220, 226)
2.Fast interface
3.Thread
4.Flange
5.Tie rod
6.Special customization

Product Details:

1.Sintered Wire cloth filter,Material: SUS 304,316L
2. Sintered Wire cloth filter Rate:1-300um
3.Sintered Wire cloth filter Working temperature:-200-600°C

Sintered Wire cloth filter Laminate media

Sintered Wire cloth filter media is composed of 5-layer or multi-layer stainless steel wire mesh, which is special canlendering and sintering in vacuum oven, to create a new filter material with high strength and rigidity. Its interlaced mesh forms a uniform and ideal filtration structure. As a new filter material, it not only overcomes the disadvantages of ordinary metal mesh, such as lower strength, poor rigidity, unstable hole shapes, but has excellent performances such as high precision and strength,efficient flow restriction, mechanical and resistance to abrasion,heat by reasonably arranging its porosity, permeability and strength. Therefore, its total performance has obviously advantages than sintered powder, ceramic, fiber cloth, other filter material.
Our sintered laminate has been widely used in many industries such as aerospace, aviation, petroleum, chemical, metallurgy, purification, gas-solid, liquid-solid, and gas-liquid separation cooling, gas distribution, fluidization bed, gas sampling collection, shock reducing, sound attenuation, inflaming retarding.

Main applications:

1.Distribution and cooling material in high temperature;
2.Material used for gas distribution and fluidization bed;
3.Material requiring high precision, stable performance in high temperature;
4.High pressure backwashed oil filter;

Specification of the Sintered Wire cloth filter


5-layer Sintered Wire Mesh Laminate Date Detail

TYPE Nominal Micron
um
Working Micron
um
Air Permeability
L/min*cm2*pa
Bubble Point Pressure
Pa
XL-SW1 1 6-7   5300-6000
XL-SW2 2 8-9 (1-6)*10-4 4300-5000
XL-SW5 5 11-13 (6-10)*10-4 3000-3700
XL-SW10 10 16-18 (6-10)*10-4 2700-3300
XL-SW15 15 24-26 (1-6)*10-3 2000-2600
XL-SW20 20 28-32 (1-6)*10-3 1800-2300
XL-SW25 25 34-36 (6-10)*10-3 1400-1900
XL-SW30 30 40-45 (6-10)*10-3 1200-1700
XL-SW40 40 50-55 (1-6)*10-2 1000-1500
XL-SW50 50 71-80 (1-6)*10-2 900-1200
XL-SW70 70 86-95 (6-10)*10-2 700-1100
XL-SW100 100 110-120 ≥5*10-2 650-1000
XL-SW150 150   ≥5*10-2
XL-SW200 200   ≥8*10-2
XL-SW300 300   ≥8*10-2

Production And Sales of Sintered Wire cloth filter

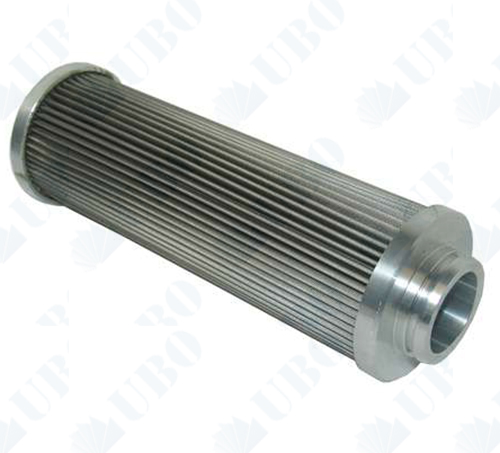

Sintered Wire cloth filterSintered Wire cloth filter
