Description of Sintered Metal Felt Filter Cartridge


The Sintered Metal Felt Filter Cartridge are manufactured with sintered metal micro-fibers, uniformly distributed to create a 3D filtering structure. The metal felt cartridge are specifically designed for viscous or corrosive fluids, or those with high viscosity.

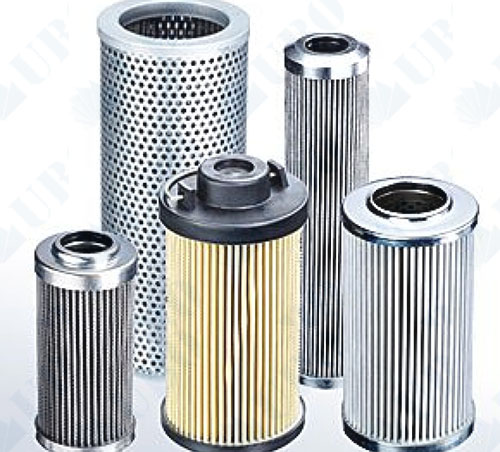

 Sintered Metal Felt Filter Cartridge



Sintered Metal Felt Filter Cartridge Features:


3 times greater dirt holding capacity than conventional metal cartridges

Double the porosity and permeability than sinter metal power cartridges

4 times higher flow rate than conventional metal cartridges

No media migration or fiber release

Excellent mechanical strength

Reclothing design available



Sintered Metal Felt Filter Cartridge Main Applications:



-- High temperature fluids

-- High viscosity fluids

-- Toxic or hazardous fluids

-- Hydraulic oil

-- Natural or process gases

-- Process steam

-- High differential pressure

-- Corrosive liquids and gases

-- Cryogenic fluids

-- Electronic grade liquids or gases

-- Precious particulate recovery

-- Sterilization steam

Specification of the Sintered Metal Felt Filter Cartridge


Sintered Metal Felt Filter Cartridge technical criteria and deviation

Specifiction
μm(c)
Micron
μm(c)
Pressure of Bubble Point
(pa)
Air Permeability
L/(min.dm2)
Pore Opening
(%)
Pollutant Carry Capacity
(mg/cm2)
Thickness
(mm)
Breaking Strength
(MPa)
Basic Value Dev. Basic Value Dev. Basic Value Dev. Basic Value Dev. Basic Value Dev. Basic Value Dev.
SF5 5 6800 +10% 47 +10% 75 +10% 5.0 +10% 0.30 +10% 32 +10%
SF7 7 5200 63 76 6.5 0.30 36
SF10 10 3700 105 75 7.8 0.37 32
SF15 15 2450 205 79 8.6 0.40 23
SF20 20 1900 280 80 15.5 0.48 23
SF25 25 1550 355 80 19.0 0.62 20
SF30 30 1200 520 80 26.0 0.63 23
SF40 40 950 670 78 29.0 0.68 26
SF60 60 630 1300 85 36.0 0.62 28



1) Material:SUS316L

2) Micron:5-60um

3) Could add protected mesh on both side

Production And Sales of Sintered Metal Felt Filter Cartridge

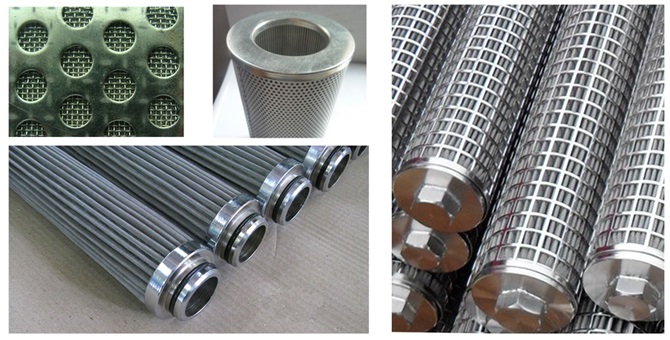

Sintered Metal Felt Filter Cartridge
