Inconel625 power sintered filter

Product Code: 2154
Category:Sintered Powder Filter
Material:inconel 625
Properties:sintered power filter
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Inconel625 power sintered filter


The Inconel625 power sintered filter felt filter adopts sintered stainless steel fiber felt, has high-pressure, high temperature and chemical corrosion resistance. It also has good air permeability, high dirt holding capacity and long-life service time can repeat use by clean, is the ideal filter element for petroleum, chemical and synthetic fiber industries.

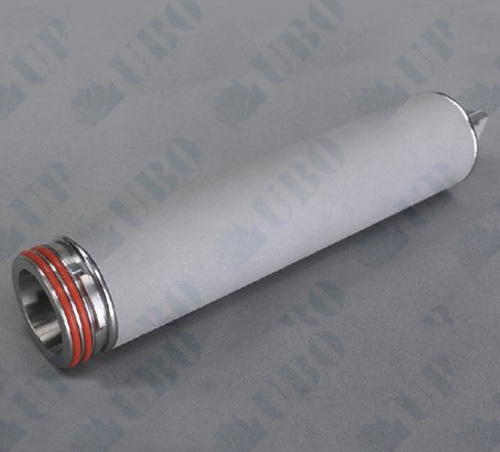

Inconel625 power sintered filter

Applications for Inconel625 power sintered filter:

Used in water treatment, pharmaceutical, chemical, food, beverage, oil filtration and etc , it could be filter mesh, filter element, filter cartridge, filter disc and etc.

Technical Parameter for Inconel625 power sintered filter:

Length:250mm, OD-53mm
Filter Precision:1~100um
Working Pressure≤31.7Mpa
Working Temperature≤300oC
Medium Viscosity≤260Pa.S
Allow Pressure Drop≤10Mpa
Dirt Holding Capacity≥16.9~41Mgcm2

Features & Benefits for Inconel625 power sintered filter:

• Stable pore shapes
• High permeability
• Low pressure drop
• High dirt-holding capacity (longer lifetime)
• High temperature resistance
• High differential pressure with stand capacity
• Strong corrosion resistant
• Back flushing

Advantages for Inconel625 power sintered filter:

1. Strength: As fourth and fifth layers do support, with high mechanical strength and compressive strength.
2. Easy to clean: As a result of surface of the filter material, having means for cleaning characteristics, especially suitable for backwashing.
3. Easy processing: suitable for cutting, bending, stamping, drawing, welding and other processes.
4. High temperature: 480 °Ccan withstand high temperatures.
5. Corrosion resistance: As a result of SUS316L, 304 materials, the corrosion resistance.
6. Filtration: Filtration range of 1μm-200μm, has a reliable filter performance.
7. Stability: Because there are two layers to do to protect the screen, plus solid melting diffusion sintering process which make filters is not easily to deform.

Specification of the Inconel625 power sintered filter


stainless steel sintered metal filter cartridge
Mesh/Inch Wire Diameter(mm) Aperture (mm) Filtration Area % Mesh/Inch Wire Diameter(mm) Aperture
(mm)
Filtration Area%
5 1.00 4.08 64 100 0.11 0.144 32
6 0.90 3.33 62 120 0.09 0.122 33
8 0.70 2.47 61 150 0.065 0.104 38
10 0.50 0.04 64 200 0.05 0.077 37
12 0.50 1.62 59 200 0.04 0.084 47
14 0.50 0.50 52 250 0.04 0.062 37
16 0.35 1.24 61 250 0.035 0.067
43
18 0.28 1.31 64 250 0.03 0.072
50
20 0.35 0.92 52 300 0.04 0.045
28
24 0.35 0.71 45 300 0.03 0.055
42
28 0.35 0.56
38
325 0.035 0.043 30

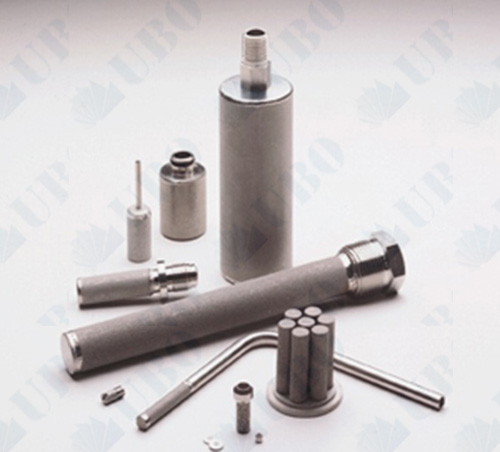

Production And Sales of Inconel625 power sintered filter
