| Category: | Header-Lateral |
| Material: | stainless steel 304,316,316L |
| Properties: | wedge wire screen |
| Application: | for refining |

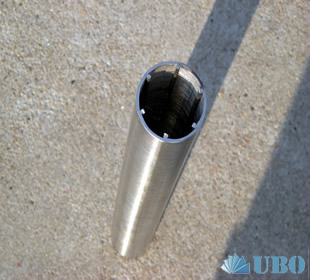

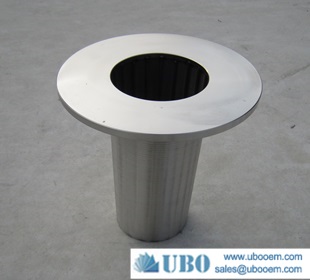

The wedge wire screen for refining is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.lateral pipe for resin trap is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.
The header assembly are the key parts of the treatment equipment and water distribution, they are widely used in the power plant, petroleum, chemical, pharmaceutical, food, sewage treatment, water plant and other industries of water treatment equipment and so on.
The Wedge Wire Screen is composed of rod strips and V shaped wires through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure.
wedge wire screen for refining
|
Material: |
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.) |
|
Wedge Wire (mm): |
Width : 1.50 1.80 2.30 3.00 3.30 3.70 |
|
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
|
Support Rod (mm): |
Width : 2.30 3.00 3.30 3.70 |
|
Height : 2.70 3.60 4.70 5.60 6.30 |
|
|
Round : 2.50mm -- 6.0mm |
|
|
Diameter ranging |
from 1 inch -----45 inch. |
|
Length: |
lengths up to 6 meters. |
|
Slot size: |
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request. |
|
Connection:thread or flange, according to your special requirement |
|
