sieve Plate network

Product Code: 2199
Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve plate screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order

Description of sieve Plate network

     The sieve plate network has another name called the ore screen, machine screen. The sieve plate network produced, the ore screen, machine screen series are as follows, compound type screen, the stainlesssteel welds the screen, the sieve plate of rectilinear vibration, jigging machine stainless steel weld the sieve plate, centrifugal dehydrator and sift basket, perforated tail pine, adhesive tape sieve plate, various types of arcual screen and sieve plate, damping arcual screen and sieve plate of high strength.

Application for Looped Wedge Wire Screens:

Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages for Looped Wedge Wire Screens:

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

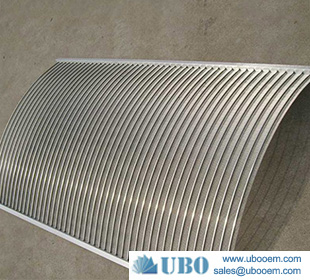

sieve Plate network

Specification of the sieve Plate network

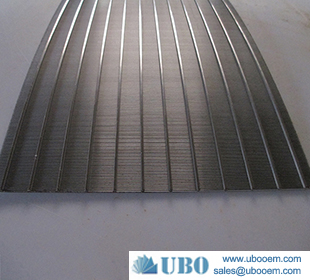

sieve Plate network


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.


galvanized low carton (LCG), stainless steel (304,316 etc.)


up to 6 meters.


from 25mm to 1200mm.


60º  120º or according to your special requirement

Production And Sales of sieve Plate network

sieve Plate network
