| Category: | Header-Lateral |
| Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
| Properties: | header lateral |
| Application: | water treatment,wastewater treatment,liquid filtration, industry filters |
Wedge wire screen header lateral water distributors are extensively used in draining operations with the features of effective filtering and webbing performance. Wedge line side assemblies are a typical screen type used in under-draining.
Wedge wire screen header lateral water distributors, also called title side assemblies or wedge line side assemblies.
The water treatment screen lateral has various slot sizes, wire sizes and diameters to suit common or customized applications.

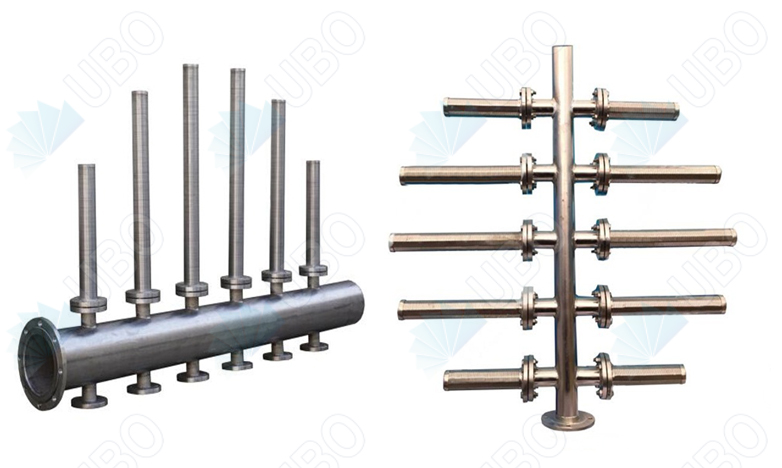

The Wedge wire screen header lateral water distributors has two type threaded ending wedge line screen side and flange ending wedge line screen side.

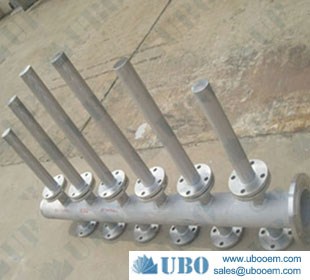

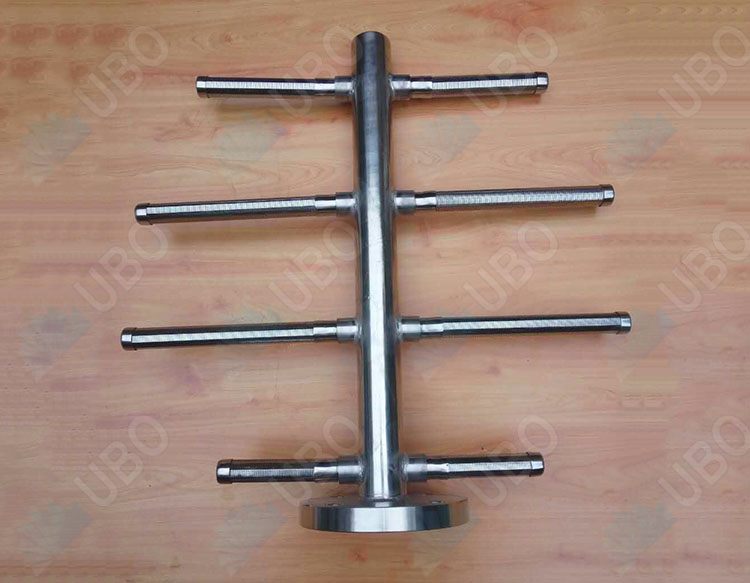

Threaded ending wedge line screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end. The flange ending wedge line screen side is composed of solid cap on one end and a flange.
The different design makes it possible to suit different operations and machines.
1. Livery niche, no leakage of resin or material
2. High opening area, high inflow area which can meet large inflow demand
3. Large liquid distribution area and invariant distribution
4. High pressure forbearance of branch pipe
5. High quality material ensures the longer life
It is widely used in various machines for screening.
Cation exchanger.
Mixed bed exchanger.
Ion exchange
|
Material |
stainless steel (304,316 etc.) |
|
Wedge Wire (mm) |
Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70 0.75*1.5, 1.0*2.0,1.5*2.5, 1.5*2.5, 2*3, 2.3*3, 3*5 |
|
Support Rod (mm) |
Width : 1.00 1.80 2.00 3.00 4.00 5.00 |
|
Height : 2.00 2.50 3.00 5.00 6.00 8.00 |
|
|
Branch Quantity(pcs) |
4, 6, 8, 10, as client's requirement |
|
Nomional Diameter |
According to the flow raiting and the vessel diameter |
|
Connection |
Flange or thread |
|
Diameter |
mini 20mm |
|
Slot size |
0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00mm also achieved upon request. |
|
Note |
Other specifications can be customized according to your requirement |
