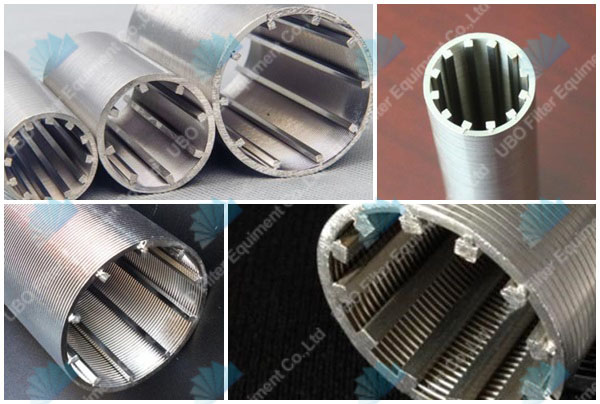

Wedge Wire Profile Wire Screen

Product Code: 2179
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Cylinder
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge Wire Profile Wire Screen


     Wedge wire screen are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.

Application for Wedge Wire Profile Wire Screen:

application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Features for Wedge Wire Profile Wire Screen:

1.Screens with large open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation
Screens with large open area shall favor groundwater filtration. Abundant water will reduce the water level’s down, thus to save energy consumption.
3.Under the same condition, large open area can make the speed of groundwater’s enter into the screen much slower than any other filtration apparatus,
which will avoid sand entering into screen because of high pressure, which reduce the abrasion of the pump.
4. Extending the service life of wells
Comparatively, groundwater’s entering into screen with larger open area is much easier than that entering into smaller open area screen.
The slow water flow will extend the service life of the wells.

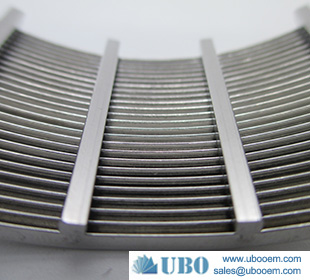

Wedge Wire Profile Wire Screen

Specification of the Wedge Wire Profile Wire Screen


Wedge Wire Profile Wire Screen



Wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length up to 6m
Diameter from 25mm to 1200mm.
End connection

Plain beveled ends, flanged or threaded couplings
