Wedge Wire Distributors

Product Code: 2868
Category:Header-Lateral
Material:stainless steel
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Wedge Wire Distributors


Wedge wire lateral assemblies is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.

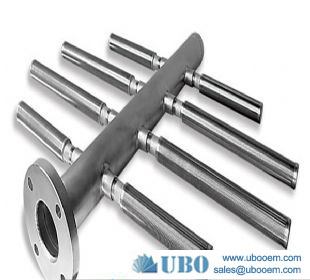

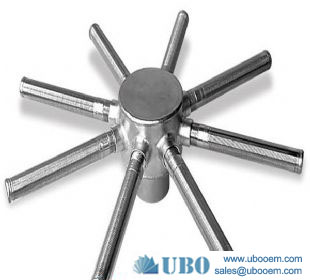

   Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style Wedge Wire Distributors and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

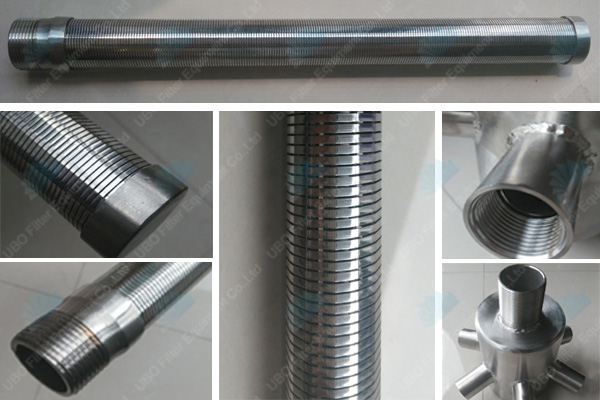

Wedge Wire Distributors

Application for Wedge Wire Distributors:

application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Features for Wedge Wire Distributors :

High open area.
High filtering and screening performance.
Various ending types.
Temperature resistance.
Corrosion and rust resistance.
Non-clogging.
Easy to install and replace.
Low maintenance cost.
Durable and long service life.
Suit different application.

Advantage for Wedge Wire Distributors:

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Traditional laterals for Wedge Wire Distributors :

With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.

Specification of the Wedge Wire Distributors


No.

(mm)TYPE

OD

(mm)

ID

(mm)

Support wire Number

Filter direction

1

SRD 40

40

31

8/10

FOTI/FITO

2

SRD 45

45

36

10/12

FOTI/FITO

3

SRD 48

48

38

12

FOTI/FITO

4

SRD 60

60

51

12

FOTI/FITO

5

SRD 70

70

61

12/18

FOTI/FITO

6

SRD 85

85

76

18

FOTI/FITO

7

SRD 110

110

101

24

FOTI/FITO

8

SRD120

120

111

24

FOTI/FITO

Production And Sales of Wedge Wire Distributors


Wedge Wire Distributors
