Wedge Flapper Screens

Product Code: 1869
Category:Sieve Plate Screen
Material:stainless steel
Properties:wedge wire screen
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Wedge Flapper Screens


Wedge Flapper Screens can also be called Johnson screen flat panel, wedge wire sieve bend screen,stainless steel screen plate.

The dewatering capacity of a Wedge Flapper Screens is primarily influenced by the screen width, the slot opening, and the wire size (width). Installation angle, feed velocity and uniform distribution across the screen are also very important

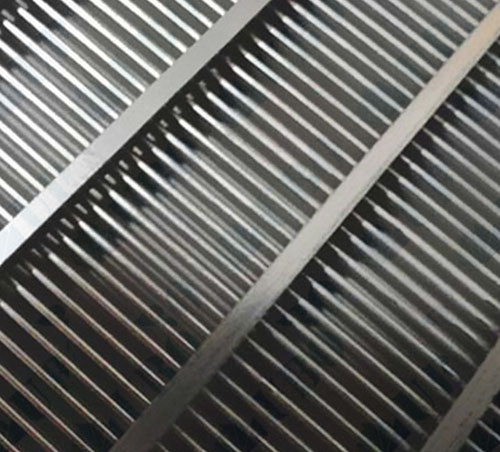

Wedge Flapper Screens



Advantages of Wedge Flapper Screen:



When compared to conventional slotted pipe, wedge wire screen flat have superior open area due to their continuous slot openings. The benefits of which will:

• Reduce energy consumption and increase water flow.

• Reduce erosion of entry surfaces and increase well life.

• Allow a uniform and efficient well development.

• Reduce significantly potential pump damage and subsequent maintenance costs.



Advantages of Wedge Flapper Screens



-- A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer)

-- A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.

-- A uniform and efficient well development due to the continuous slot opening.



Application of Wedge Flapper Screens



Vibrating screen decking,cross flow sieves, surface water intake screen, mineral processing, fish diversion screen panel, hatchery screens, food processing, and flooring for malt kiln,germination, and grain drying.

Specification of the Wedge Flapper Screens


SLOT

(INCH)

LENGTH

 (m)

WIDTH

(m)

COLLAPSE STERENG

(PSI)

TENSILE WEIGHT

(TON)

WRAP (thick*deep)

(mm)

RODS

(mm)

0.040

1-6

0.5-2

395

6

2.2*3.0

3.8mm/22

0.040

1-6

0.5-2

395

6

2.3*3.0

3.8mm/22

0.040

1-6

0.5-2

252

8

2.3*3.5

3.8mm/32

0.010

1-6

0.5-2

399

10.5

3.0*5.0

3.8mm/48

0.020

1-6

0.5-2

370

10.5

3.0*5.0

3.8mm/48

0.040

1-6

0.5-2

323

10.5

3.0*5.0

3.8mm/48

0.010

1-6

0.5-2

206

11

3.0*5.0

3.8mm/50

0.020

1-6

0.5-2

191

11

3.0*5.0

3.8mm/50

0.040

1-6

0.5-2

167

11

3.0*5.0

3.8mm/50

Production And Sales of Wedge Flapper Screens

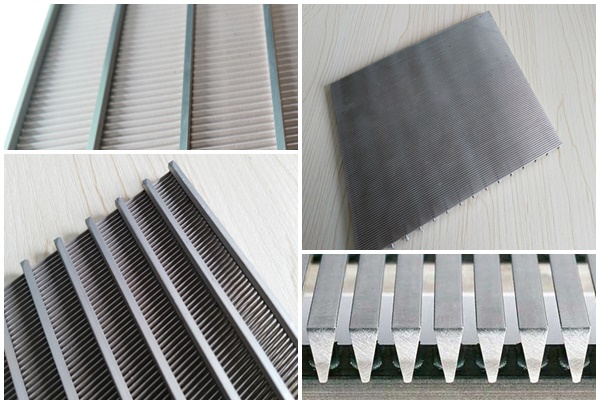

Wedge Flapper Screens
