V Shaped Wire Water Well Screens for Water Treating Equipment

Product Code: 2748
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:wedge wire screen
Application:paper machines, recycling, dewatering, debris removal, fiber fractionalization, drying

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of V Shaped Wire Water Well Screens for Water Treating Equipment


V Shaped Wire Water Well Screens are made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

Application for V Shaped Wire Water Well Screens

Pulp and paper plants use our screens in the wood yard, paper machines, recycling, dewatering, debris removal, fiber fractionalization, drying, water purification and other processes.Johnson Screens are also applied in mineral processors, refiners, waste water treatment and water supply systems.

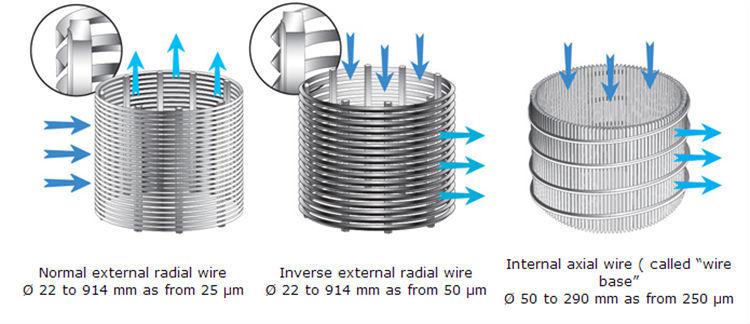

V Shaped Wire Water Well Screens for water treating equipment

Features for V Shaped Wire Water Well Screens

1) The V-shape section plane of Wedge wire screen pipe (Johnson screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2) The consecutive slot of Wedge wire screen pipe (Johnson screens) have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.

3) Wire and support rods are all-welded, which makes the Wedge wire screen pipe (Johnson screens) more robust and longer life.

4) The longitudinal support rods and the continuous slot make the Wedge wire screen pipe (Johnson screens) have more excellent pressure-resistant performance.

5) Specifications and end connections of Wedge wire screen pipe (Johnson screens) can be fabricated according to customers’ requirements.

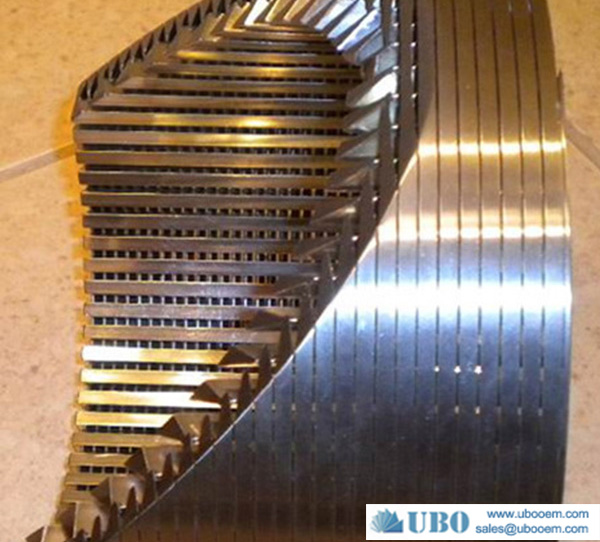

Construction for V Shaped Wire Water Well Screens

1) We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.

2) The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the strainer have bigger filter area and non obstructive, avoid the high concentration of impurities.

3) After work for a period of time, the strainer can be back flush.It can use for many times.

Specification of the V Shaped Wire Water Well Screens for Water Treating Equipment

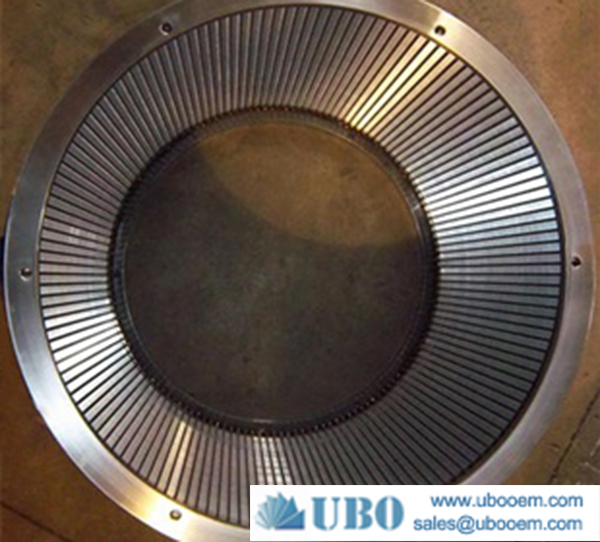

V Shaped Wire Water Well Screens for water treating equipment

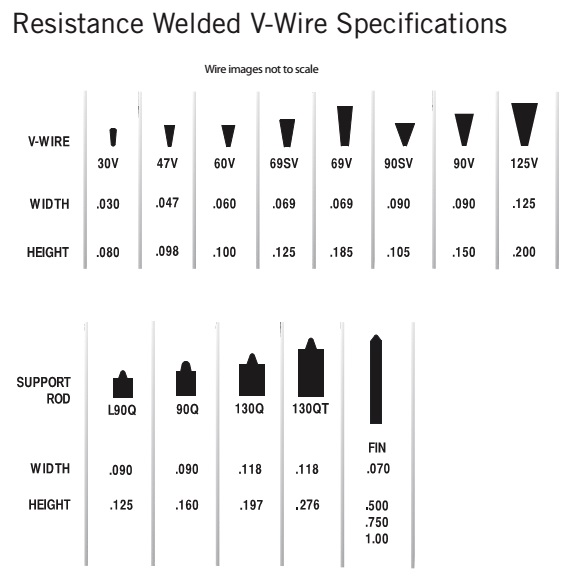

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Production And Sales of V Shaped Wire Water Well Screens for Water Treating Equipment


V Shaped Wire Water Well Screens for water treating equipment
