V-Shaped Stainless Steel Water Well Screen for industrial water

Product Code: 2701
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of V-Shaped Stainless Steel Water Well Screen for industrial water


V-Shaped Stainless Steel Water Well Screen is composed of ribs and V—winding wire, manufactured with advanced special welding equipment.Ribs and V—winding wire are connected with resistance weld by special equipment and has the advantages, such as, high welding strength, homogeneous gap, corrosion resistance, large effective filtration area, good permeability,simple structure, and slot size is 20 micron or larger for users to choose freely.

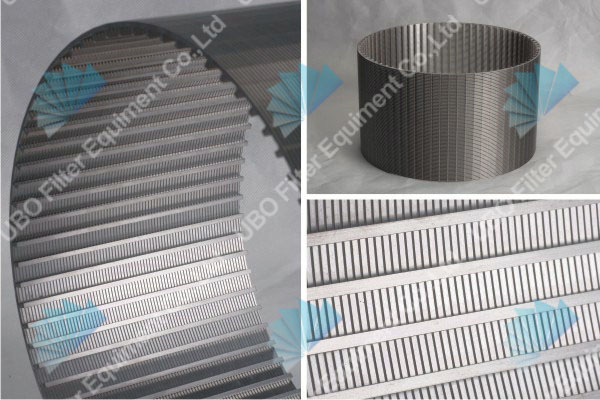

V-Shaped Stainless Steel Water Well Screen for industrial water



Features of V-Shaped Stainless Steel Water Well Screen for Industrial Water



-- Accurate filtering performance.

-- High efficiency.

-- Narrow slot openings.

-- Normal or high grade type for choice.

-- Various edge types.

-- Wide range of diameters for choice.

-- Special sizes can be customized.

-- Economical but high grade.

-- Corrosion resistance.

-- Rust resistance.

-- Long service life and durable.



Application of V-Shaped Stainless Steel Water Well Screen for Industrial Water



V-Shaped Stainless Steel Water Well Screens are usually used as the water filter equipment. They are used in the deep well pump, submersible pump systems, they can also be used in water treatment equipment, environmental protection, the water of the sea into the industrial water and domestic water desalination treatment, water treatment, water softening treatment, oil chemical industry: the terminal filtration of oil products and chemical acid.

V-Shaped Stainless Steel Water Well Screen for industrial water

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-laterals.

Specification of the V-Shaped Stainless Steel Water Well Screen for industrial water


V-Shaped Stainless Steel Water Well Screen for industrial water

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note:

other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
