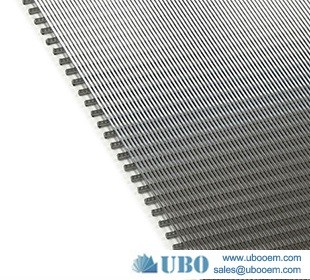

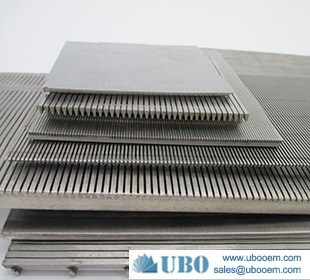

Stainless steel wedge wire soltted sieve screen plate

Product Code: 3644
Category:Sieve Plate Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Panel
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of Stainless steel wedge wire soltted sieve screen plate


UBO can provide a variety of wedge wire screen plate, no borders, borders, opposite borders, etc., the material can also be customized according to your requirements.

Stainless steel screen plate is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods,then be made to panel screen through cutting and edge welding. Each profile wire and support rod is contacted by resistance welding. Support bar will be flat bar ,round bar ,triangle wire and so on,slot size range from 0.2mm to 3mm.

Stainless steel wedge wire soltted sieve screen plate

Stainless steel wedge wire soltted sieve screen plate

Application of Stainless steel wedge wire soltted sieve screen plate

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

Features of Stainless steel wedge wire soltted sieve screen plate

Accurate slot gap, high efficiency performance, stable structure, anti-high temperature, anti-corrosive, good mechanical properties, long-lasting and durable, safe and reliable, various field can be applied.

Stainless steel wedge wire soltted sieve screen plate

Stainless steel wedge wire soltted sieve screen plate

Stainless steel wedge wire soltted sieve screen plate

Specification of the Stainless steel wedge wire soltted sieve screen plate


Stainless steel wedge wire soltted sieve screen plate

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Other Shapes

Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8x2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x6

2x4

3x5

3x6

3x10

4x6

5x6

3x5

3x6

3x10

4x6

5x6

5x8

End Finishing

With the frame, without any frame, according to request.

Note

Customized According To Requirement
