Stainless steel wedge wire screen filter nozzle used for sugar system

Product Code: 3574
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of Stainless steel wedge wire screen filter nozzle used for sugar system


UBO supply Stainless steel wedge wire screenfilter nozzle, in order to make the slot v-shaped.It can stop the impurities very well.

The wedge wire screen filter nozzle was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities

After work for a period of time, the filter can be back flush.It can use for many times.
Filtering direction from outside to inside (FOTI).

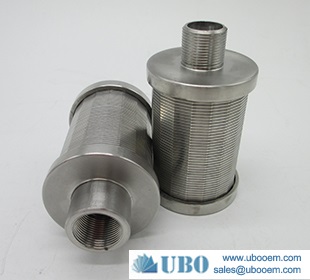

Stainless steel wedge wire screen filter nozzle used for sugar system

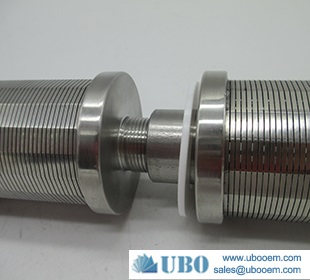

Stainless steel wedge wire screen filter nozzle used for sugar system

Applications of stainless steel wedge wire screen filter nozzle for sugar system

Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

Features of stainless steel wedge wire screen filter nozzle for sugar system

1) Type 316L stainless steel construction.

2) Continuous slot design provide large circulation area

3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5) Wedge wire screen is highly resistant to plugging.

6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Specification of the Stainless steel wedge wire screen filter nozzle used for sugar system


Wedge wire water treatment sand filter nozzle


Type Slot
(mm)
Dimension Flow Rating
(M3/H)
D(mm) H(MM) L(MM) Thread Fittings
UBO-0.5 0.25 45 45 90/request M,NPT, G, PT(BSPT),Z,BSP, request SS Gasket,
Rubber gasket,
Nut, request
0.5
UBO-1.0 0.25 53 45 90/request 1.0
UBO-1.5 0.25 57 45 90/request 1.5
UBO-2.0 0.25 57 55 100/request 2.0
UBO-2.5 0.25 70 55 100/request 2.5
UBO-3.0 0.25 70 70 120/request 3.0
Note * All the above size are the normal size. Customized size is possible.
* UBO could help to design according to the application and requirement.
* The nozzles customized range as below:
1. Slot range: 0.05-2mm
2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application
3. Thread according to requirement

Production And Sales of Stainless steel wedge wire screen filter nozzle used for sugar system


Stainless steel <a href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> filter nozzle used for sugar system
