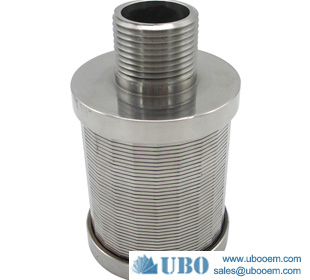

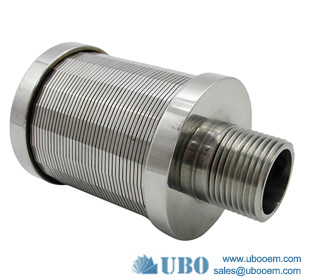

Stainless steel v wire Type Wedge Wire Screen Filter Nozzle

Product Code: 3407
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Email:sales@ubooem.com

Description of Stainless steel v wire Type Wedge Wire Screen Filter Nozzle


Wedge Wire type wedge wire screen filter nozzles are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.



Wedge Wire Type<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> Filter NozzleWedge Wire Type<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> Filter Nozzle



Advantages of Stainless steel v wire Type Wedge Wire Screen Filter Nozzle



Wedge Wire Screen has a continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer)

A uniform and efficient well development due to the continuous slot opening.

A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.



Applications of Stainless steel v wire Type Wedge Wire Screen Filter Nozzle



- De-watering;

- Separating;

- Filtering;

- Straining;

- Sizing;

- Drying;

- Media retention

- Water intake;

Wedge Wire Type<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> Filter NozzleWedge Wire Type<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> Filter Nozzle

Specification of the Stainless steel v wire Type Wedge Wire Screen Filter Nozzle


stainless steel slimline nozzle internal filters

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application

3. Thread according to requirement

Production And Sales of Stainless steel v wire Type Wedge Wire Screen Filter Nozzle


Wedge Wire Type<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> Filter Nozzle
