Stainless steel Wedge Wire type filter screen nozzle used in sugar syetem

Product Code: 3535
Category:Water Strainer & Nozzle
Material:stainless stee stainless steel 304,304L,304HC,316,316L,321,430 or as per your requestl 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Email:sales@ubooem.com

Description of Stainless steel Wedge Wire type filter screen nozzle used in sugar syetem


Stainless steel Wedge Wire type filter screen nozzle used in wastewater system are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen. It’s a new type filter component. The filter nozzle has a high precision filtration ability. The minimum slot size is 20 micron.

Wedge Wire type filter screen nozzle used in wastewater syetem are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen. It’s a new type filter component. The filter nozzle has a high precision filtration ability. The minimum slot size is 20 micron.



Applications of Wedge Wire type filter screen nozzle for wastewater syetem



Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

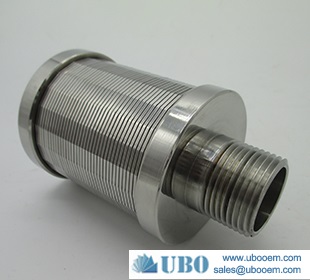

Welded wire Wedge Wire type filter screen nozzle used in water filteration syetemWelded wire Wedge Wire type filter screen nozzle used in water filteration syetem



Advantages of Wedge Wire type filter screen nozzle for sugar syetem



-- Excellent roundness

-- Very good slot width precision

-- High mechanical load capacity

-- No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry

-- Automated welding process for high-precision manufacturing

-- Perfectly adjusted screen basket profiles

-- Available for all screens

-- Surface finishing as required

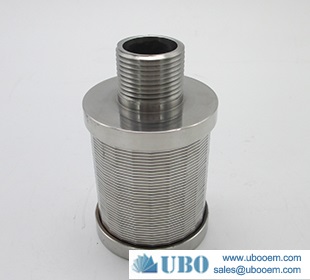

Wire Wedge Wire type filter screen nozzle used in sugar syetem

Specification of the Stainless steel Wedge Wire type filter screen nozzle used in sugar syetem


Welded wire Wedge Wire type filter screen nozzle used in water filteration syetem
Type Slot
(mm)
Dimension Flow Rating
(M3/H)
D(mm) H(MM) L(MM) Thread Fittings
UBO-0.5 0.25 45 45 90/request M,NPT, G, PT(BSPT),Z,BSP, request SS Gasket,
Rubber gasket,
Nut, request
0.5
UBO-1.0 0.25 53 45 90/request 1.0
UBO-1.5 0.25 57 45 90/request 1.5
UBO-2.0 0.25 57 55 100/request 2.0
UBO-2.5 0.25 70 55 100/request 2.5
UBO-3.0 0.25 70 70 120/request 3.0

* All the above size are the normal size. Customized size is possible.
* UBO could help to design according to the application and requirement.
* The nozzles customized range as below:
1. Slot range: 0.05-2mm
2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application
3. Thread according to requirement

Production And Sales of Stainless steel Wedge Wire type filter screen nozzle used in sugar syetem


Wire Wedge Wire type filter screen nozzle used in sugar syetem
