Single tube type water strainer

Product Code: 2866
Category:Water Strainer & Nozzle
Material:stainless steel
Properties:wedge wire screen
Application:Overseas service center available

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Single tube type water strainer


Single tube type water strainer is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle. Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

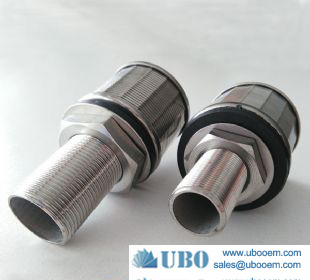

Single tube type water strainer

Application of Single tube type water strainer

The wedge wire water strainer&nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Characteristics of Single tube type water strainer

1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

Specification of the Single tube type water strainer


No. (mm)TYPE OD
(mm)
ID
(mm)
Support wire Number Filter direction
1 SRD25.4 25.4 18.6 12 FOTI
2 SRD 33 33 24 8 FOTI
3 SRD 37 37 28 8 FOTI
4 SRD 40 40 31 8/10 FOTI/FITO
5 SRD 45 45 36 10/12 FOTI/FITO
6 SRD 48 48 38 12 FOTI/FITO
7 SRD 60 60 51 12 FOTI/FITO
8 SRD 70 70 61 12/18 FOTI/FITO
9 SRD 85 85 76 18 FOTI/FITO
10 SRD 110 110 101 24 FOTI/FITO
11 SRD120 120 111 24 FOTI/FITO

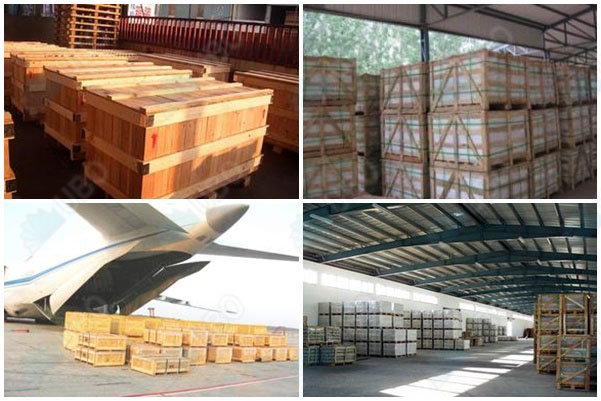

Production And Sales of Single tube type water strainer


Single tube type water strainer
