Stainless Steel Single tube type water strainer nozzle

Product Code: 3382
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Email:sales@ubooem.com

Description of Stainless Steel Single tube type water strainer nozzle


Stainless Steel Single tube type water strainer nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

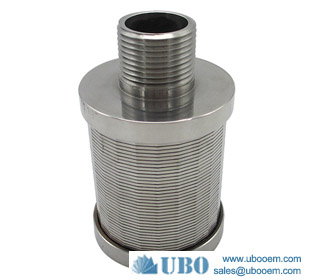

Stainless Steel Single tube type water strainer nozzleStainless Steel Single tube type water strainer nozzle

Application of Stainless Steel Single tube type water strainer nozzle

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

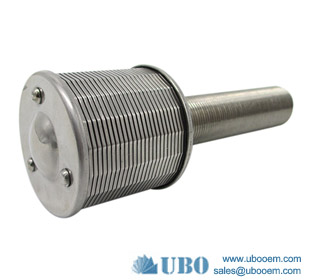

Stainless Steel Single tube type water strainer nozzleStainless Steel Single tube type water strainer nozzle

Advantages of Stainless Steel Single tube type water strainer nozzle

Great mechanical strength
Highly resistant to abrasivity and vibration.
It can hold more pressure and temperature compared to the perforated sheet screen.
Longer screen life.
Larger useful area than that of the standard perforated sheet screen.
The wedge wire screen can be used in any of INOXPA filters.
The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.
It is possible to clean the wedge wire screen with a reversed flow (back flushing).

Specification of the Stainless Steel Single tube type water strainer nozzle


water wedge wire filters screen nozzle

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application

3. Thread according to requirement
