Non Slip Walkway

Product Code: 1996
Category:Sieve Plate Screen
Material:Stainless steel 304,304L,316,316L
Properties:wedge wire screen
Application:Filtration,mine, coal, oil, fertilizer, grain, salt, and environmental protection industries

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Non Slip Walkway

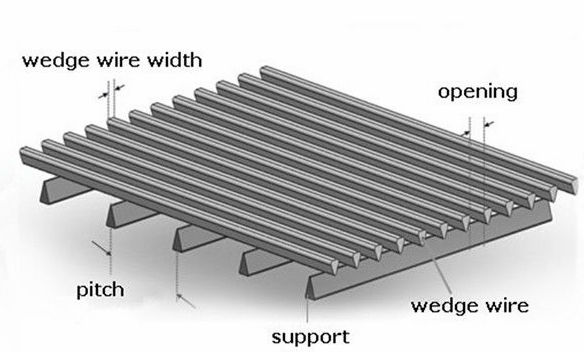

wedge v wire screen plate can be constructed using rectangular support rods or round support rods. They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.

Non Slip Walkway



Features for Non Slip Walkway:



Mine screen meshes are new products in the line of wire mesh. They have the characters of easy leakage, corrosion resistant, abrasion resistant. It is strong to be acidproof, alkali resisting, bear high temperature, pulling force etc.



Applications for Non Slip Walkway:



Widely uses in mine, coal, oil, fertilizer, grain, salt, and environmental protection industries.
For filtering of liquid, the powder material. On petroleum, chemical industry, metallurgy, mine, medicine purifies, the drilling mud purifies the equipment in particular the important fitting



Advantages for Non Slip Walkway:



1) Better filter function. The V-shape section plane of water well screens(Johnson screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2) Prolong life of well. The consecutive slot of water well screens(Johnson screens) have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.

3) Long service life. Wire and support rods are all-welded, which makes water well screens(Johnson screens) more robust and longer life.

4) High pressure-resistant. The longitudinal support rods and the continuous slot make the water well screens(Johnson screens) have more excellent pressure-resistant performance.

5) Customized. Specifications and end connections of water well screens(Johnson type screens) can be fabricated according to customers’ requirements.

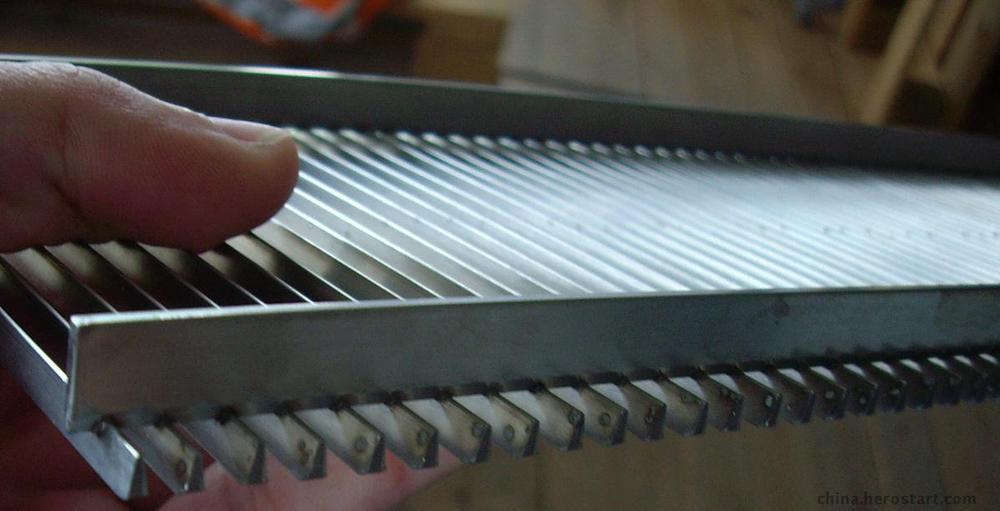

Non Slip Walkway

Non Slip Walkway

Specification of the Non Slip Walkway


Non Slip Walkway


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
