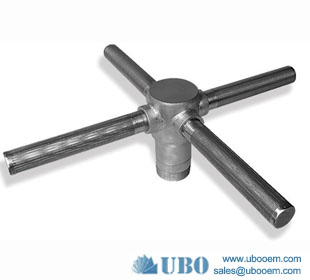

Hub Radial Laterals

Product Code: 2246
Category:Header-Lateral
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:centrifuge screens and baskets
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Hub Radial Laterals


     Header-Lateral System For the treatment of process water such as in ‘Ion Exchange’ and in the process of removing organic matter, Completion Products offers products such as the Header-Laterals Systems to uniformly collect and distribute process flow. Sizing of both the main header pipe and the screen laterals are based on recommended through-pipe and slot opening velocities to ensure higher efficiency and lower pressure drop. Sizing of the slot size is also critical to ensure that there is no resin/media leakage. The screen laterals (screen-based or screen + drilled pipe-base) are removable and can be designed with either a flange or threaded nipple connection.

Application for Hub Radial Laterals:

wedge wire type hub and header lateral consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Feature for Hub Radial Laterals:

1. Uniform slot, no leakage of resin or material
2. High opening area, high flow area which can meet large flow requirement
3. Large liquid distribution area and uniform distribution
4. Diversified structure which can meet the requirements of the container
5. High pressure tolerance of branch pipe
6. High quality material ensures the longer life

Hub Radial Laterals

Specification of the Hub Radial Laterals


Hub Radial Laterals





Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
