Fractal Laterals

Product Code: 1870
Material:stainless steel
Properties:wedge wire screen

Email to Us Start Order

Description of Fractal Laterals

The Profile Wire Screen element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.

In the event that there is resin/media build up with the Resin Trap Screen assembly, an increase in the pressure drop will result and if one is installed, the resin/media will be visible through the “sight glass”.

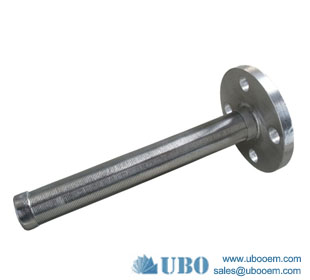

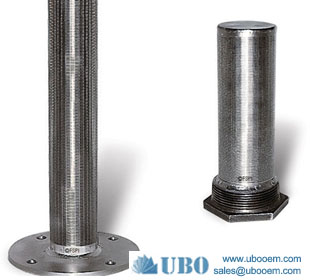

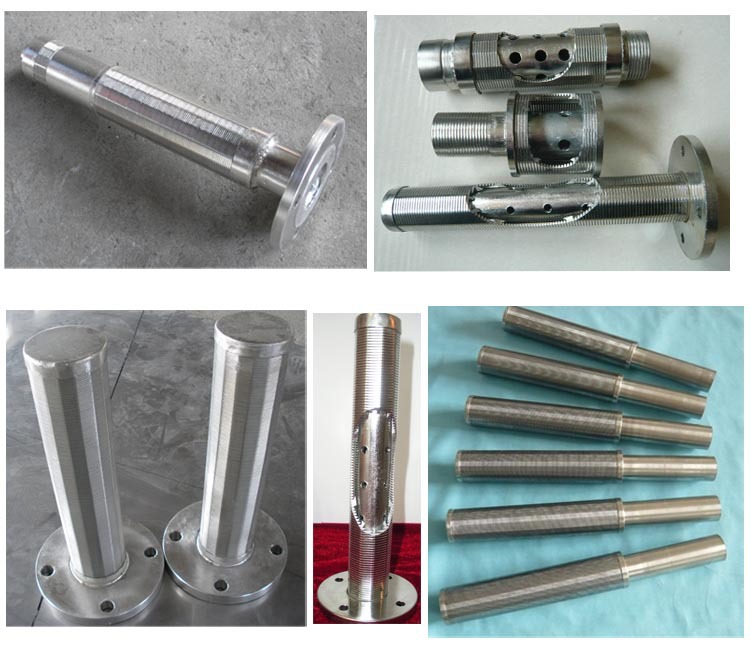

Fractal Laterals

Used for Fractal Laterals:

Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Principle for Fractal Laterals:

A Resin Trap / Strainer normally serves to retain particles in a process flow. The quantity of particles is normally very low,so that cleaning can be done during flow interruption.

Advantages for Fractal Laterals:

Very precise slots for perfect particle retention combined with minimum
Obstruction of the process flow,flexibility in design,strong construction,Large open area,plug-resistant slot design.

Specification of the Fractal Laterals

Type Slots mm ΦA ΦB L1mm L2mm
AM 0.05, 0.1, 0.2, 0.3, 0.5, 1.0 G2" Φ50 30,55 73, 126, 180, 231, 284, 338, 389
G1 1/2" Φ38 30,55
G2" 1 1/4"NPT 30
G2" 1 1/2"NPT 30
Φ68 G2" 30
1 1/2"NPT 1 1/4"NPT 30
2 1/2" Φ60 20
