Horizontal Vibrating Screen

Product Code: 2625
Category:Sieve Plate Screen
Material:stainless steel
Properties:wedge wire screen
Application:make animal feed ,filteration, dehydration

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Horizontal Vibrating Screen

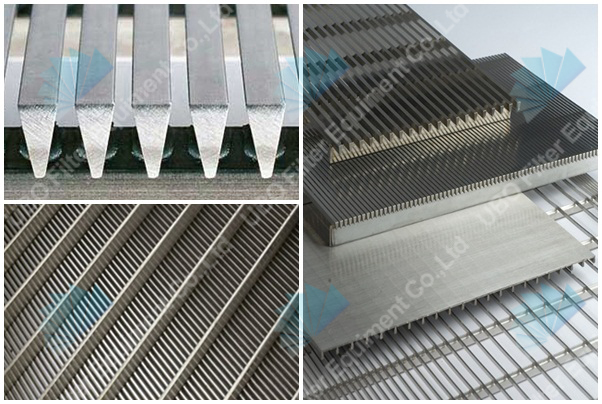

Horizontal Vibrating Screen can be manufactured with a variety of rectangular or round support rods. The wire width and relief angle is determined by weight per square foot and efficiency requirements. This screen decking magnifies vibration with drum-tight tension and withstands the violent vibrating action. These industrial profile screens are also used in fluid bed dryers, coolers and much more.

Horizontal Vibrating Screen

Our Horizontal Vibrating Screen are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a stainless steel Vee wire screens on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your need.



Features of Horizontal Vibrating Screen



Accurate slot gap, high efficiency performance, stable structure, anti-high temperature, anti-corrosive, good mechanical properties, long-lasting and durable, safe and reliable, various field can be applied.



Application of Horizontal Vibrating Screen



Horizontal Vibrating Screen are used for wide range of applications such as sizing, classification and de-watering in mining and other industries. These are used for coal & iron ore beneficiations when fitted on the vibratory machine.

Horizontal Vibrating Screen

Specification of the Horizontal Vibrating Screen


Horizontal Vibrating Screen
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Width
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

Production And Sales of Horizontal Vibrating Screen


Package: in wood case

Delivery Time: 5-25 days
