Flat grids with horizontal position welding

Product Code: 2206
Category:Sieve Plate Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve plate screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Flat grids with horizontal position welding


    Johnson wedge wire water well filter screens are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a Johnson wedge wire water well filter screen on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs.

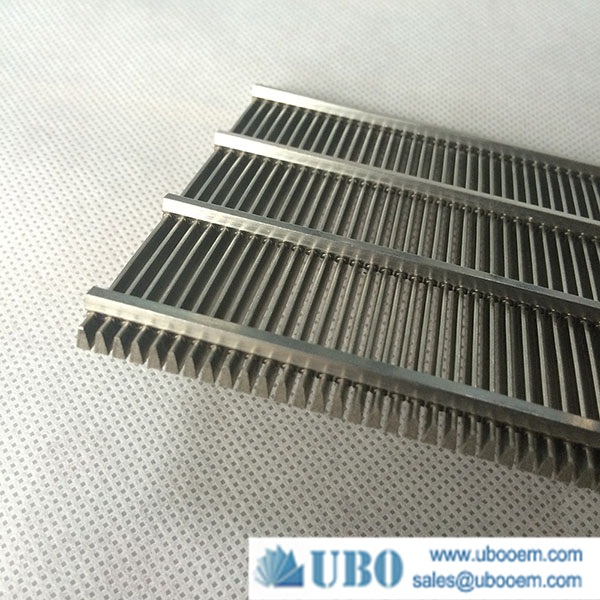

Flat grids with horizontal position welding

Application for Wedge Wire Screens plate:

Vibrating screen decking,cross flow sieves, surface water intake screen, mineral processing, fish diversion screen panel, hatchery screens, food processing, and flooring for malt kiln,germination, and grain drying.

Advantages for Wedge Wire Screens plate:

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

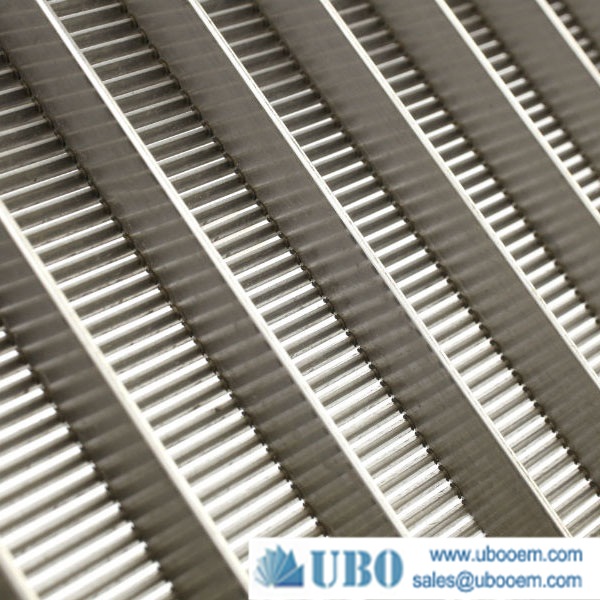

Flat grids with horizontal position welding

Specification of the Flat grids with horizontal position welding


Vee wire screens





urface Profile
W
H

Material

10S

0.75
1.425

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

11SL

10.75
1.8

22S

1.8
3.7

4S

0.45
1.2

50SL

3.4
7.5



Surface Profile
W
H
Material
Q22
2
2.28

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

Q35
3
5
Q53
4
3
D56
4
5.6
D45
3.8
6.0

Production And Sales of Flat grids with horizontal position welding


Flat grids with horizontal position welding
