Description of Gravity Fed Screens


Gravity Fed Screens also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens.

Gravity Fed Screens consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

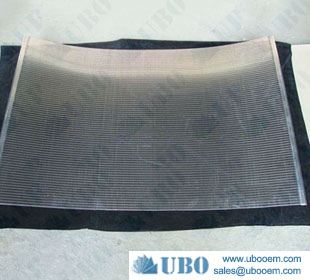

Gravity Fed Screens

Application for Gravity Fed Screens:

They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

Features for Gravity Fed Screens:

Efficient separation with sharp cut;
Unique profile wire welded wege wire sieve bend;
Safe and stand equipment;
Simple screen replacement design;
Pneumatically operated washing jet for screen surface.

Advantage for Gravity Fed Screens:

1 Excellent roundness
2 Very good slot width precision
3 High mechanical load capacity
4 No form closure connection that would allow vibration of the profiled bars
5 Automated welding process for high-precision manufacturing
6 Perfectly adjusted screen basket profiles
7 Available for all screens
8 Surface finishing as required

Specification of the Gravity Fed Screens


Item

Technical

Specification

1

Sieve

Width(mm)

605

800

1000

1200

1500

1800

2000

2

Sieve Length(mm)

800

800

800

800

800

800

800

3

Sieve angle(mm)

50°

50°

50°

50°

50°

50°

50°

4

Flow rate(m3/h)

15-25

45-85

55-110

65-130

80-160

100-180

120-220

Production And Sales of Gravity Fed Screens


Gravity Fed ScreensGravity Fed Screens
