Flat welded Wedge Wire Panels

Product Code: 2807
Category:Sieve Plate Screen
Material:stainless steel
Properties:Wedge Wire Screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Flat welded Wedge Wire Panels


Flat welded Wedge Wire Panels can be constructed using rectangular support rods or round support rods. They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.

Flat welded Wedge Wire Panels can be designed to optimize the open area, strength and wear life for each application. The panels are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures.

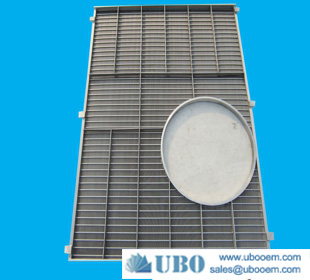

Flat welded Wedge Wire Panels

Advantages of Flat welded Wedge Wire Panels

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

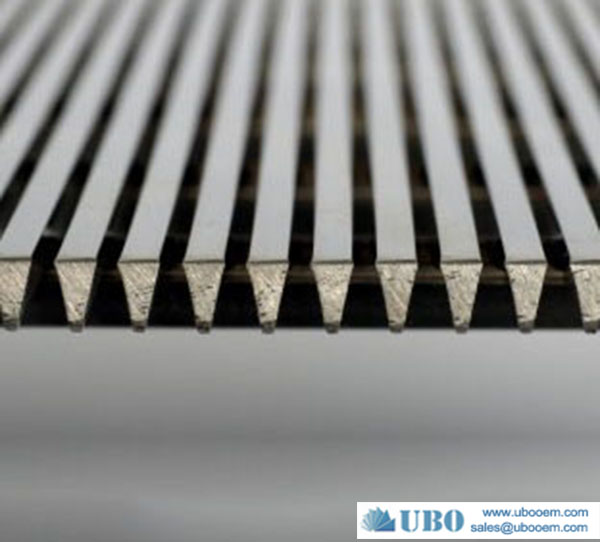

A 'V' shaped profile wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.

Stainless steel v shap plate screen can be parts of deep well pumps or submersible pumps; can be used for water treatment equipment, environment protection, the sea water desalination, water softening treatment, oil and chemical processing; terminal filtration for petroleum products, filtration for chemical acid and soda liquid, for alcohol and other organic solvents recycle filtration.

Application of Flat welded Wedge Wire Panels

-- Mineral processing;
-- Hatchery screens ;
-- Food processing ;
-- Surface water intake screens ;
-- Fish diversion screen panels ;
-- Vibrating or static screen decking ;
-- Flooring for malt kiln, germination, and grain drying.

Specification of the Flat welded Wedge Wire Panels


Flat welded Wedge Wire Panels

Specification

Material

AISI304/316/316L,Galvanized low carton

Wedge Wire(mm)

Width :1.50 1.80 2.30 3.00 3.30 3.70

Height :2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support rod (mm)

Width :2.30 3.00 3.30 3.70



Height :2.70 3.60 4.70 5.60 6.30



Round : 2.50mm --6.00mm

Slot /opening size

0.10--6.00mm,also can be customized as your request.

Length /Width

Can be customized ad your request

Width

25mm--1200mm

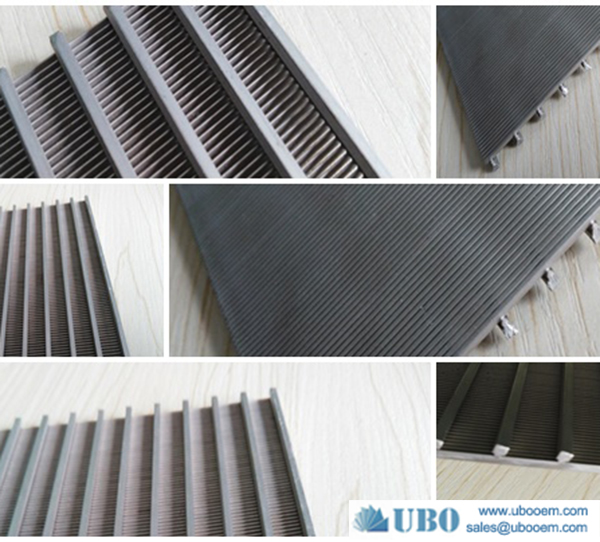

Production And Sales of Flat welded Wedge Wire Panels


Flat welded Wedge Wire Panels
