Fish Protection Screens

Product Code: 2848
Category:Sieve Bend Screen
Material:stainless steel
Properties:Wedge Wire Screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Fish Protection Screens


Fish Protection Screens known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.

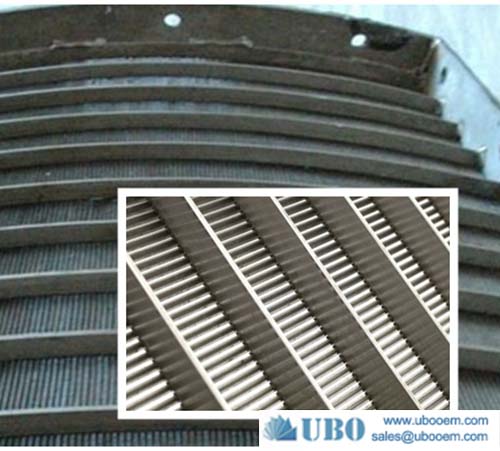

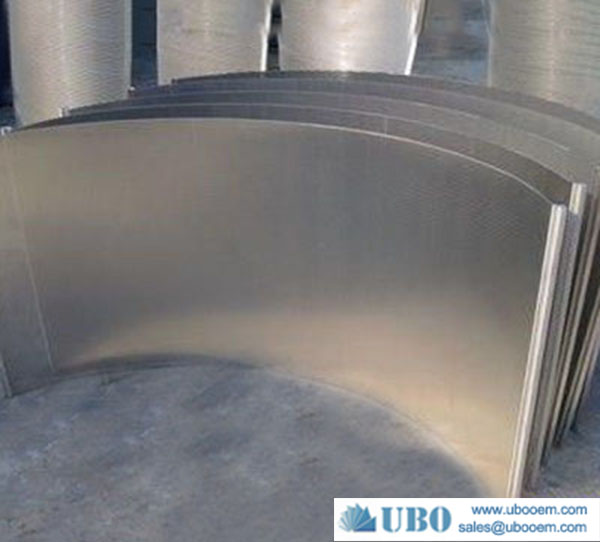

Fish Protection Screens consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow.Wedge wire screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Fish Protection ScreensFish Protection Screens

Advantages of Fish Protection Screens

• Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.
• High-precision slot sizes: precise slot sizes are available to meet customer´s requirements.
• Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.
• Low pressure-drop.
• Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.
* High efficiency: continuous slot opening.
* Large flow rate: “v” shaped profile wire ensures a uninterrupted flow.

Application of Fish Protection Screens

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.

Specification of the Fish Protection Screens


Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters.
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings
