Wire Mesh Cone Filter

Product Code: 1641
Category:Cone Filter&Strainer
Material:wire mesh
Properties:stainless steel filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

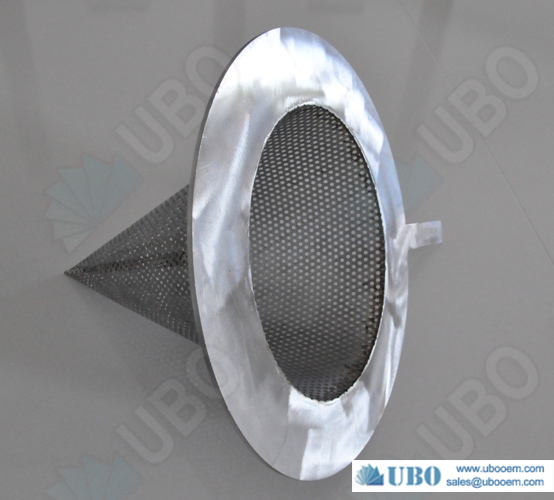

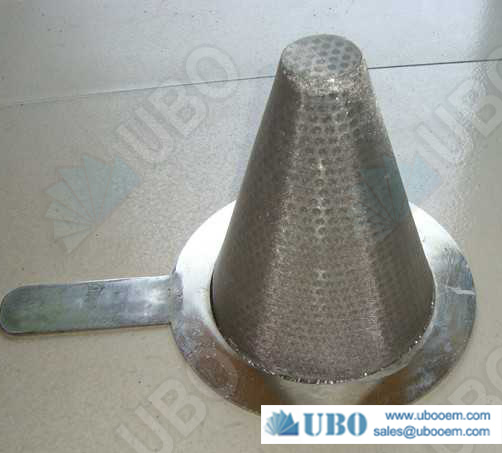

Description of Wire Mesh Cone Filter


Stainless steel cone filters are very low cost pipeline strainers that are designed for start-up of new or revamped piping systems. They offer inexpensive protection for costly valves, pumps, meters, and other mechanical equipment against damage causing contamination present during start-up and commissioning. They are for temporary use and should be removed and thrown away after the initial cleaning of the system. Since these strainers are temporary, they need to be installed in a section of pipe such as a removable spool piece.

To ensure roundness and flat, Stainless steel cone strainer is sintered after using rolling seam welding process and the method of correction weld, it can make the overall look more beautiful


Applications for Wire Mesh Cone Filter:



Widely used in chemical fiber, petroleum, chemical industry, pharmacy, foodstuff, water treatment electric, power, pharmaceutics, machinery, metallurgy, ceramics, dispose of sewage, foodstuff and beverage, cosmetic etc.



Features for Wire Mesh Cone Filter:



1) It is in good quality and lowest price
2) The product is sell well in home and abroad.
3) Customized logos and designs are accepted
4) Customized size are accepted,customized packing are welcome
5) Corrosion resistance, high and low temperature resistance, pressure resistance, good wear resistance, long use period

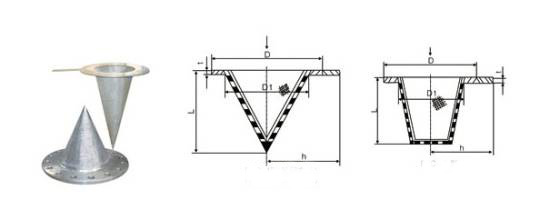

Specification of the Wire Mesh Cone Filter


Wire Mesh cone filer


Mesh/Inch

Wire Diameter

Aperture

Open Area

Weight(LB) /100 Square Foot

Inch

MM

Inch

MM

1x1

0.080

2.03

0.920

23.37

84.6

41.1

2X2

0.063

1.60

0.437

11.10

76.4

51.2

3X3

0.054

1.37

0.279

7.09

70.1

56.7

4X4

0.063

1.60

0.187

4.75

56.0

104.8

5X5

0.041

1.04

0.159

4.04

63.2

54.9

10X10

0.025

0.64

0.075

1.91

56.3

41.2

24X24

0.014

0.356

0.0277

0.70

44.2

31.8

80X80

0.0055

0.140

0.0070

0.18

31.4

16.9

90X90

0.005

0.127

0.0061

0.16

30.1

15.8

100X100

0.0035

0.089

0.0065

0.17

42.3

8.3

120X120

0.0037

0.0940

0.0064

0.1168

30.7

11.6

160X160

0.0025

0.0635

0.0038

0.0965

36.4

5.94

200X200

0.0021

0.0533

0.0029

0.0737

33.6

6.2

250X250

0.0016

0.0406

0.0024

0.0610

36.0

4.4

300X300

0.0051

0.0381

0.0018

0.0457

29.7

3.04

325X325

0.0014

0.0356

0.0017

0.0432

30.0

4.40

400X400

0.0010

0.0254

0.0015

0.370

36.0

3.3

500X500

0.0010

0.0254

0.0010

0.0254

25.0

3.8

635X635

0.0008

0.0203

0.0008

0.0203

25.0

2.63
