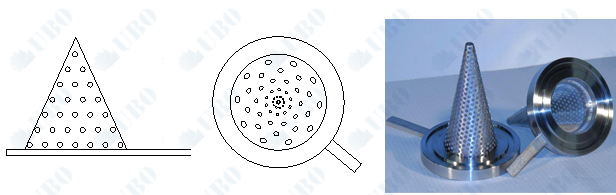

Cone Shaped Filter Tube

Product Code: 1645
Category:Cone Filter&Strainer
Material:Stainless Steel wire mesh
Properties:stainless steel filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

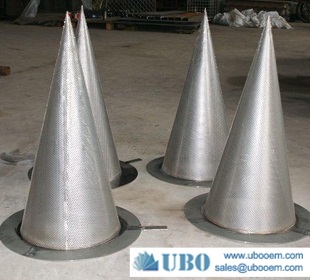

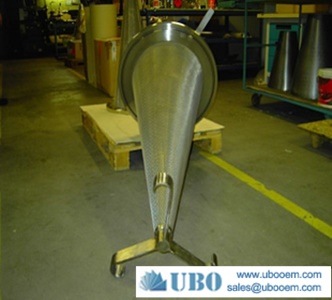

Description of Cone Shaped Filter Tube


Cone Shaped Filter Tube is the application of perforated plate sintered wire mesh. it is made of sintered mesh after cutting, precision welded.

To ensure roundness and flat, Stainless steel cone strainer is sintered after using rolling seam welding process and the method of correction weld, it can make the overall look more beautiful

Application of Cone Shaped Filter Tube

They are very low cost pipeline strainers that are designed for start-up of new or revamped piping systems. They offer inexpensive protection for costly valves, pumps, meters, and other mechanical equipment.

Characteristics of Cone Shaped Filter Tube

acid and alkali-resistance, high temperature resistance

wear resistance, strong stress resistance

low cost, easy to install, clean, maintain etc

Specification of the Cone Shaped Filter Tube


Cone Shaped Filter Tube

flange size (inch )

pipe size

inside diameter

outside diameter (class 150-1500)

150/300

300

600

900

1500

3/4

5/8

2 1/8

2 1/2

2 1/2

2 5/8

2 5/8

1

3/4

2 1/2

2 3/4

2 3/4

3

3

1 1/2

1 1/4

3 1/4

3 5/8

3 5/8

3 3/4

3 3/4

2

1 3/4

4

4 1/4

4 1/4

5 1/2

5 1/2

2 1/2

2 1/4

4 3/4

5

5

6 3/8

6 3/8

3

2 3/4

5 1/4

5 3/4

5 3/4

6 1/2

6 3/4

4

3 3/4

6 3/4

7

7 1/2

8

8 1/8

5

4 5/8

7 5/8

8 1/4

9 3/8

9 5/8

9 7/8

6

5 1/2

8 5/8

9 3/4

10 3/8

11 1/4

11

8

7 3/8

10 7/8

12

12 1/2

14

13 3/4

10

9 3/8

13 1/4

14 1/8

15 5/8

17

17

12

11

16

16 1/2

17 7/8

19 1/2

20 3/8

14

12 1/4

17 3/8

18 7/8

19

20 3/8

22 5/8

16

14

20 1/8

21

21 7/8

22 1/2

25 1/8

18

15 3/4

21 1/4

23 1/4

23 3/4

25

27 5/8

20

17 1/2

23 1/2

25 1/2

26 5/8

27 3/8

29 5/8

24

21 1/4

27 7/8

30 1/4

30 7/8

32 7/8

35 3/8

30

27 1/4

34 3/8

37 1/8

37 7/8

39 3/8

-

36

33

40 7/8

43 5/8

44 1/8

46 7/8

-
