| Category: | Cone Filter&Strainer |
| Material: | stainless steel mesh,Perforated Metal |
| Properties: | stainless steel filter |
| Application: | Filtration in Oil,Chemical,Pharmacy Industry |

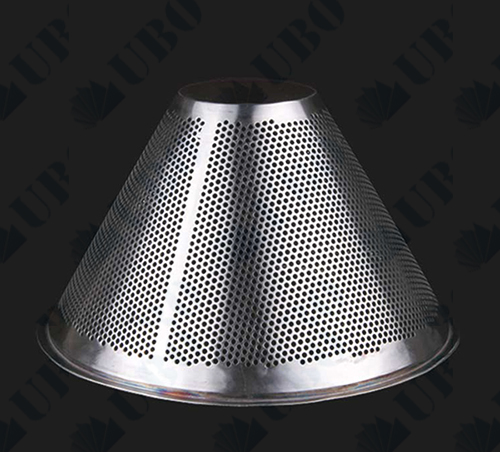

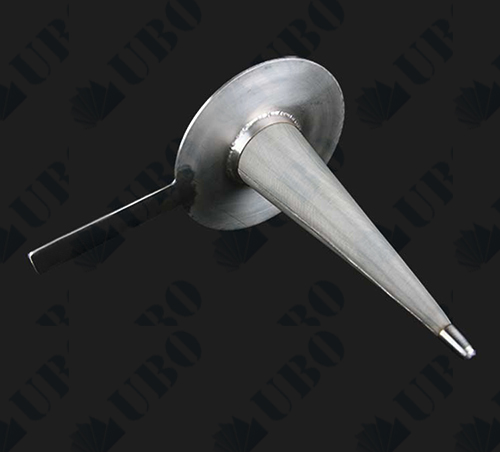

Temporary strainers are designed to remove foreign particles from pipelines. These strainers provide effective and economical protection of pumps, valves, and similar more costly equipment, particularly during start up. The temporary strainers are often used when a new plant is put into operation or by repairs of existing plants. They are not manufactured to be used instead of permanent strainers and must be removed from the pipeline after initial start up.
Features
Available with special lengths providing straining ratios of many times the pipe area Available to fit up to 2500 lb. flanges
Construction
Standard Class 150 and Class 300 units available
Available in carbon steel, stainless steel and other materials
Installation
These units are installed between flanges.
Ideal for applications where space restrictions are a factor
Screens
Standard material is 304SS.
Specify other alloy material is required.
Specify perforation and mesh size for proper particle retention.
Consider maximum allowable pressure drop when specifying.
|
flange size (inch ) |
||||||
|
pipe size |
inside diameter |
outside diameter (class 150-1500) |
||||
|
150/300 |
300 |
600 |
900 |
1500 |
||
|
3/4 |
5/8 |
2 1/8 |
2 1/2 |
2 1/2 |
2 5/8 |
2 5/8 |
|
1 |
3/4 |
2 1/2 |
2 3/4 |
2 3/4 |
3 |
3 |
|
1 1/2 |
1 1/4 |
3 1/4 |
3 5/8 |
3 5/8 |
3 3/4 |
3 3/4 |
|
2 |
1 3/4 |
4 |
4 1/4 |
4 1/4 |
5 1/2 |
5 1/2 |
|
2 1/2 |
2 1/4 |
4 3/4 |
5 |
5 |
6 3/8 |
6 3/8 |
|
3 |
2 3/4 |
5 1/4 |
5 3/4 |
5 3/4 |
6 1/2 |
6 3/4 |
|
4 |
3 3/4 |
6 3/4 |
7 |
7 1/2 |
8 |
8 1/8 |
|
5 |
4 5/8 |
7 5/8 |
8 1/4 |
9 3/8 |
9 5/8 |
9 7/8 |
|
6 |
5 1/2 |
8 5/8 |
9 3/4 |
10 3/8 |
11 1/4 |
11 |
|
8 |
7 3/8 |
10 7/8 |
12 |
12 1/2 |
14 |
13 3/4 |
|
10 |
9 3/8 |
13 1/4 |
14 1/8 |
15 5/8 |
17 |
17 |
|
12 |
11 |
16 |
16 1/2 |
17 7/8 |
19 1/2 |
20 3/8 |
|
14 |
12 1/4 |
17 3/8 |
18 7/8 |
19 |
20 3/8 |
22 5/8 |
|
16 |
14 |
20 1/8 |
21 |
21 7/8 |
22 1/2 |
25 1/8 |
|
18 |
15 3/4 |
21 1/4 |
23 1/4 |
23 3/4 |
25 |
27 5/8 |
|
20 |
17 1/2 |
23 1/2 |
25 1/2 |
26 5/8 |
27 3/8 |
29 5/8 |
|
24 |
21 1/4 |
27 7/8 |
30 1/4 |
30 7/8 |
32 7/8 |
35 3/8 |
|
30 |
27 1/4 |
34 3/8 |
37 1/8 |
37 7/8 |
39 3/8 |
- |
|
36 |
33 |
40 7/8 |
43 5/8 |
44 1/8 |
46 7/8 |
- |
