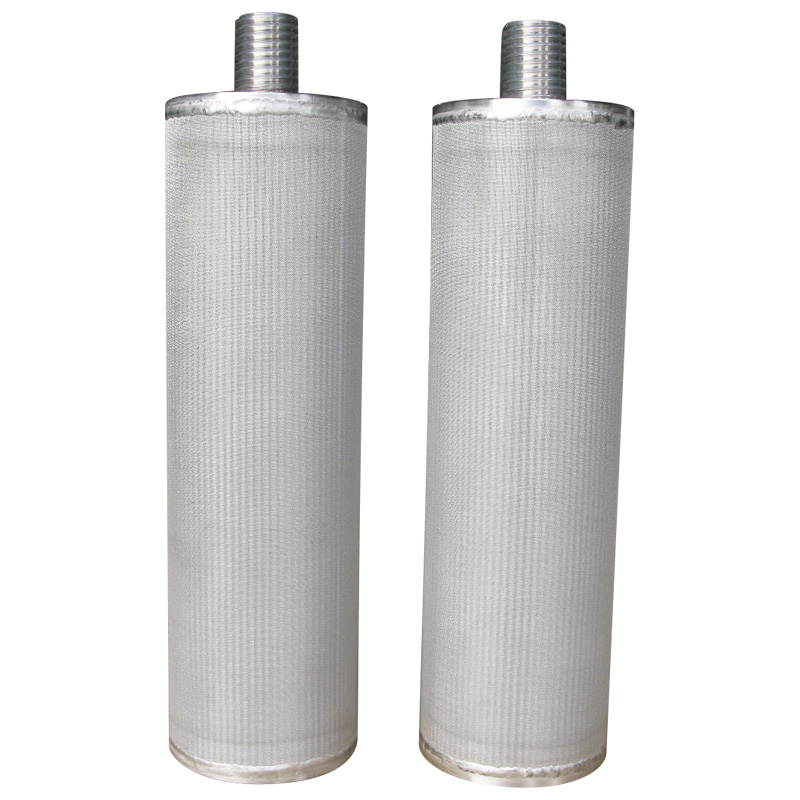

Stainless Steel Wire Mesh Cylinder Filter

Product Code: 1599
Category:Cylinder Filter
Material:Stainless Steel wire mesh
Properties:Stainless Steel Filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Stainless Steel Wire Mesh Cylinder Filter


Stainless steel wire mesh cylinder filters are made of 5-layer sintered wire mesh laminates.This kind of filter cartridge has good capacicties such as the corrossion resistance,good air permeability,easy to back wash,high filter rating and etc.



Features of Stainless Steel Wire Mesh Cylinder Filter

1) high precision filter: pore stability, will not change the pore pressure changes with the phenomenon. Can effectively remove suspended solids and particulates, excellent filtration, purification effect.

2) permeability, pressure loss is small. Filter composed entirely of spherical powder, high porosity, pore size uniformity and smooth, the initial resistance is small, easy cleaning, regeneration ability, long service life.

3) high mechanical strength, good rigidity, good plasticity, anti-oxidation, corrosion protection without additional framework support, installation and use, easy maintenance, assembly, and can be welding, bonding and mechanical processing.

4) uniform porosity, especially for fluid distribution, homogenization treatment uniformity requirements of the occasion.

5) forming a copper powder products, without cutting, effective utilization of raw materials is high, maximum material savings.

6) filtration: 5 ~ 50μm.



Application of Stainless Steel Wire Mesh Cylinder Filter

-- Filtration and diverse manufacturing processes

-- Aerospace lube oil filtration

-- Gas detection instrument filters

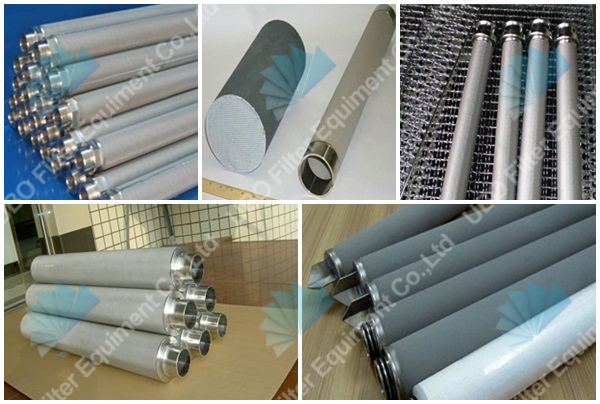

stainless steel wire mesh cylinder filter



Specification of the Stainless Steel Wire Mesh Cylinder Filter


Specification List of Stainless Steel Wire Mesh

Mesh/Inch

Wire Diameter(mm)

Aperture (mm)

Filtration Area%

Mesh/Inch

Wire Diameter(mm)

Aperture
(mm)

Filtration Area%

5

1.00

4.08

64

100

0.11

0.144

32

6

0.90

3.33

62

120

0.09

0.122

33

8

0.70

2.47

61

150

0.065

0.104

38

10

0.50

2.04

64

200

0.05

0.077

37

12

0.50

1.62

59

200

0.04

0.084

47

14

0.50

0.50

52

250

0.04

0.062

37

16

0.35

1.24

61

250

0.035

0.067

43

18

0.28

1.13

64

250

0.03

0.072

50

20

0.35

0.92

52

300

0.04

0.045

28

24

0.35

0.71

45

300

0.03

0.055

42

28

0.35

0.56

38

325

0.035

0.043

30



 stainless steel wire mesh cylinder filter
