Stainless Steel Punching Filter Tube

Product Code: 2029
Category:Filter Strainer
Material:stainless steel mesh,Perforated Metal
Properties:stainless steel filter
Application:Filter (chemistry),Oil filter,Water Filter

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Stainless Steel Punching Filter Tube


Metal filters are used primarily in commercial and industrial/OEM applications. In some applications the goal is to protect downstream components from particulate matter. In other cases, a metal filter can be used to separate, or screen one substance from another. Whether your specific application calls for removing unwanted contaminants from fluid or air, protecting expensive process equipment, or simply separating one material from another, Steellong can manufacture a custom metal filter designed for your exact specifications from wire cloth, perforated metal, or expanded metal

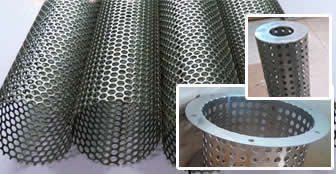

Punching filter tube



Advantages of Stainless Steel Punching Filter Tube

Metal filters are excellent for use in applications that will include continuous exposure to liquid or moisture, or where paper filters do not offer sufficient rigidity or strength. In addition to outstanding durability, there are other inherent design benefits available with metallic filters. Metal filters can be fabricated by welding and crimping, eliminating the need for adhesives or epoxy bonding. Unlike paper filters, metallic filters can withstand temperature range in excess of 500 ° F. and can withstand extremely high differential pressures. Depending upon metals used, your filter can be designed as compatible with most caustic fluids. Stainless steel filters, for example, offer a high degree of resistance to corrosion in caustic environments.  Best of all, metal filters are inherently cleanable and reusable.  Reusable metal filters offer superior service life when compared to paper and cloth filters, and are commonly used in metal cutting, engine and compressor oil, and waste water applications.

Perforated Stainless Steel Tubes are designed from three basic materials: wire cloth, expanded metal and perforated metal. Each material has its own flow rates and individual characteristics making it a “best fit” for particular engineering requirements. For example, perforated metals can be selected with round holes, square holes, or any other shape required based on size and or shape of the particulate that needs to be strained or filtered. Expanded metal and perforated metal filters offer superior rigidity and durability to wire cloth filters. For filters that require intricate bends and pleats to achieve proper performance characteristics, and where durability is less of a concern, wire cloth filters in mesh ranges from 2 x 2 to 5 micron mesh are the clear choice.

Metal Filter Materials

Wire cloth filters, expanded metal filters, and perforated metal filters can be designed and manufactured using the a wide range of materials:
Aluminum Filters
Brass Filters
Bronze Filters
Carbon Steel Filters
Copper Filters
Galvanized Steel Filters
Monel Filters
Stainless Steel 304 Filters
Stainless Steel 316 Filters
In some applications, filter design requires a mix of materials for support or to develop a protective underlying or outer structure of expanded or perforated metal or a coarser mesh that guards delicate pleated interior components

Specification of the Stainless Steel Punching Filter Tube


Model

Structure

Filter rating (u)

Thickness(mm)

Weight(kg/m2)

Porosity%

B2-0.5T

Filter layer+60

2—100

0.5

1.6

60

B3-0.7T

60+Filter layer+60

2—100

0.7

2.4

56

B3-1.0T

50+Filter layer+20

20—200

1.0

3.3

58

B3-2.0T

Filter layer+20+8.5

20—250

2.0

6.5

58

B4-1.0T

60+Filter layer+40+20

2—200

1.0

4.4

44

B4-1.7T

40+Filter layer+20+16

2—200

1.7

6.2

54

B5-1.9T

30+Filter layer+60+20+16

2—200

1.9

5.3

52

B5-2.5T

80+Filter layer+30+10+8.5

2—200

2.5

8.8

55

B7-2.0T

50+Filter layer+40+20+40+Filter layer+50

2—150

2.0

7.4

58

Production And Sales of Stainless Steel Punching Filter Tube


Punching filter tube
