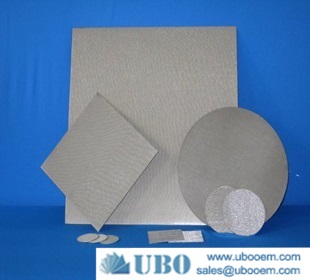

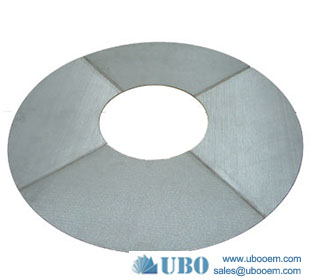

Plain steel filter disc

Product Code: 1751
Category:Disc Filters
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Filter disc
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Plain steel filter disc

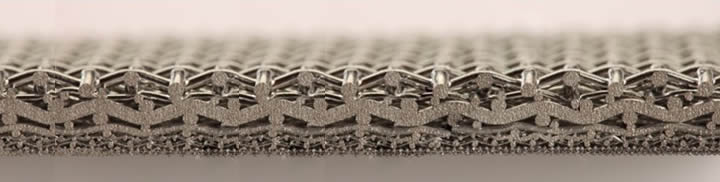

   It is made of Sintered 5-layer or multi-layer Stainless steel wire mesh laminates, it take the advantages of good permeability, high holding dirty capacity, large filter area, long service life, high temperature resistance and corrosion resistance, and cleanable, can be used for many times, it is widely applied in the filtration system of petroleum and chemical industry.

Application for Plain steel filter disc:

The filter has been widely used in transfomer oil, turbine oil, hydraulic oil, aviation kerosene, petrolum, chemical, power plant, coal carbon, mining, pharmaceutical, food and engineering industries.

Characteristics for Plain steel filter disc:

The benefits of filter disc is high quality and filtration capacity, precise fitting filter elements, optimum cost-performance ratio, constant quality control during production etc. It is widely used in melt filtration.

Plain steel filter disc

Specification of the Plain steel filter disc


Plain steel filter disc

Mesh
Wire dia (mm)
Material (AISI)
12*64
0.58/0.40
304 ,316
24*110
0.36/0.25
304 ,316
14*88
0.50/0.33
304 ,316
30*150
0.18/0.14
304 ,316
40*200
0.14/0.11
304 ,316
50*250
0.10/0.071
304 ,316
80*700
0.06/0.05
304 ,316
165*800
0.071/0.04
304 ,316
200*1800
0.05/0.03
304 ,316
325*2300
0.03/0.025
316L
400*2800
0.03/0.02
316L

Production And Sales of Plain steel filter disc


Plain steel filter disc
