sinter filter dryer for Pharmaceutical

Product Code: 2176
Category:Sintered Metal Mesh Filter
Material:Sintered Wire Mesh
Properties:sintered metal mesh filter
Application:Filtration in Oil,Chemical,Pharmacy Industry

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of sinter filter dryer for Pharmaceutical


It is widely applied in the filtration of liquid and gas and it is applied in many industries, such as petrifaction, polyester, pharmaceutical, food, beverage and water treatment.

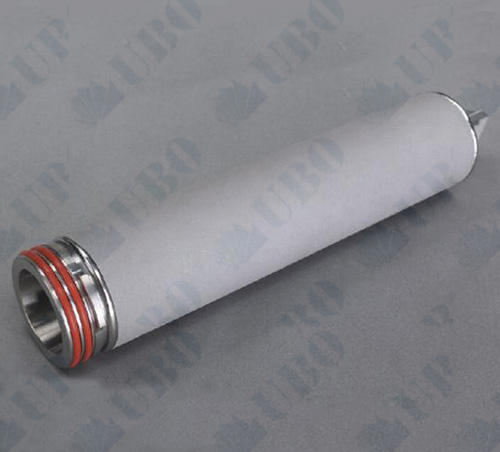

sinter filter dryer for Pharmaceutical

Moreover, the minimum diameter we can process can be up to 10mm and the filter rating can be up to 1micron.
In addition, as to the connection type and specification, we can produce it at customer's request

It is a porous metal panel which consists of multiple meshes and is sintered (diffusion-bonded) into one panel. It usually consists of protection mesh, filter mesh and support mesh and its combination is depending on needs or requirements.
Features
Weldability, Easily fabricated, Durability, Heat resistance, High pressure-resistance, Washability, Filtration and Separation, Uniform aperture size
Applications
Oil and Gas / Petrochemicals / Chemicals / Polymers / Synthetic fiber and film / Food and beverages / Milk and dairy products / Pharmaceuticals / Aerospace and environmental protection
Line of Products and services
Sintered wire mesh panels of SUS316L (SUS316),
Sintered wire mesh panels of such alloys as Hastelloy, Monel, Inconel , Alloy 20, etc.,
Sintered panels with combination of SUS meshes and SUS plates,
Various sizes and shapes of metal filters based on sintered wire meshes,
Heat treatment services such as annealing, brazing, baking, etc.
Ubo Filter Co.,Ltd could supply stainless steel filter elements,filter element, filter disc, sintered  filter,filter strainer,polymeric filter,basket filter, wire mesh filter ,pleated filter

Specification of the sinter filter dryer for Pharmaceutical


Standard sintered wire mesh panel, "Poremet''

“Poremet” is our standard products of sintered wire mesh panel which is well designed for multi purposes and usually consists of five (5) layers of meshes;

First layer: 100 mesh as protection,

Second layer: filter mesh which varies on requirement,

Third layer: 100 mesh again as protection,

Fourth layer: 12/64 mesh as support,

Fifth layer: 12/64 mesh again, but placed cross to the fourth layer.

The standard sizes of “Poremet” panels are,

500 mm x 1,000 mm,

1,000 mm x 1,000 mm,

1,200 mm x 1,200 mm

Material :Stainless steel wire, steel wire, iron wire, galvanized wire etc .

Round: From 2.50mm to 6.0mm

Slot size:0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Length: Lengths up to 6 meters.

Diameter: ranging from 25mm to 800mm.

Note: We can design and fabricate according to customer requirements

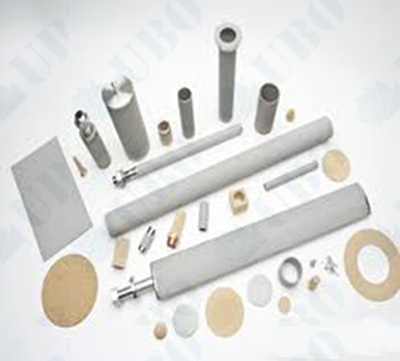

sinter filter dryer for Pharmaceutical
Mesh/Inch Wire Diameter(mm) Aperture (mm) Filtration Area % Mesh/Inch Wire Diameter(mm) Aperture
(mm)
Filtration Area%
5 1.00 4.08 64 100 0.11 0.144 32
6 0.90 3.33 62 120 0.09 0.122 33
8 0.70 2.47 61 150 0.065 0.104 38
10 0.50 0.04 64 200 0.05 0.077 37
12 0.50 1.62 59 200 0.04 0.084 47
14 0.50 0.50 52 250 0.04 0.062 37
16 0.35 1.24 61 250 0.035 0.067 43
18 0.28 1.31 64 250 0.03 0.072 50
20 0.35 0.92 52 300 0.04 0.045 28
24 0.35 0.71 45 300 0.03 0.055 42
28 0.35 0.56 38 325 0.035 0.043 30

Production And Sales of sinter filter dryer for Pharmaceutical


sinter filter dryer for Pharmaceuticalsinter filter dryer for Pharmaceutical
