Sintered Air Fluid Plate

Product Code: 1702
Category:Sintered Metal Mesh Filter
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Sintered filter
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Sintered Air Fluid Plate


      Sintered Air Fluid Plate are stainless steel wedgy wire welded into screen Filter rating range from 30 micron to 800micron are available Wedgy wire welded screen is welded with stainless steel wedgy shaped wire and support bar Major products include filter plates, filter basket and filter elements They have used characteristics of good strength, high rigidity, resistance to abrasion and corrosion, even gap, good in filtration and fluidity, easy to clean and back wash

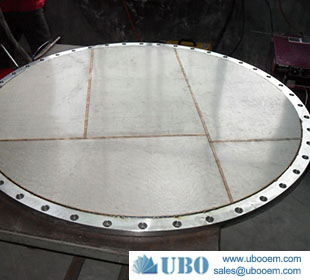

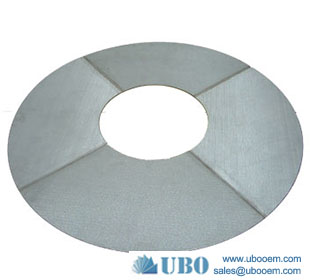

Sintered Air Fluid Plate

Application for Sintered Air Fluid Plate:

Wedgy mesh filter elements are used in sieving of petroleum, chemical industry , pharmaceutics, foods and beverage, metallurgy and coal, also can be used in filtration of water treatment

Characteristics for Sintered Air Fluid Plate:

a. Complex structure, high filtering precision
b. Large dirt holding capacity, long service life time
c. Good corrosion resistance and pressure resistance
d. Increased flow quantity per unit area
e. woven type stainless steel mesh, with homogeneous pore distribution, high strength, and easy to clean.

Specification of the Sintered Air Fluid Plate


Mesh/Inch Wire Diameter(mm) Screen Thickness(mm)
105 0.075 0.14
120 0.08 0.15
150 0.06 0.115
165 0.05 0.095
180 0.045 0.085
200 0.04 0.1
230 0.036 0.085
250 0.036 0.088
270 0.035 0.083
300 0.03 0.07
325 0.028 0.065
350 0.03 0.06
400 0.023 0.040
450 0.023 0.042

Production And Sales of Sintered Air Fluid Plate


Sintered Air Fluid Plate
