Industrial filtration systems are expected to deliver more than just clean fluids. They must withstand demanding operating conditions, maintain stable flow rates, reduce maintenance costs, and provide long service life. As industries such as chemical processing, petrochemicals, pharmaceuticals, food production, and water treatment continue to increase production efficiency, the choice of filter element has become a critical engineering decision.

Among various filtration media, the stainless steel pleated wire mesh filter cartridge has gained widespread adoption because it combines high filtration efficiency with exceptional mechanical strength and reusability. Unlike disposable polymer cartridges, pleated wire mesh cartridges can operate under high temperatures, high differential pressures, and corrosive environments while maintaining consistent performance.

What Is a Stainless Steel Pleated Wire Mesh Filter Cartridge?

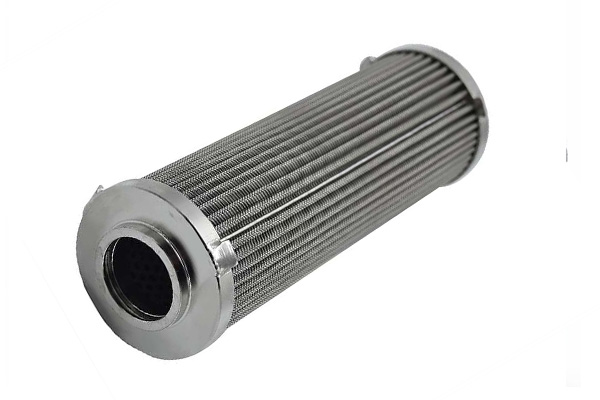

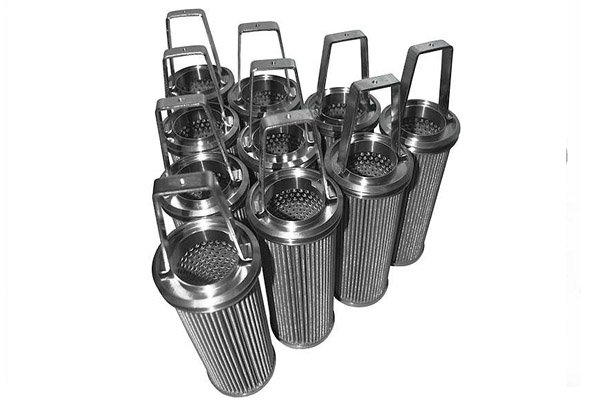

A stainless steel pleated wire mesh filter cartridge is constructed from multiple layers of woven stainless steel mesh that are pleated to maximize the effective filtration area. The pleated media is supported by an inner and outer protective cage, ensuring structural stability even under challenging operating conditions.

Common construction materials include:

• Stainless Steel 304

• Stainless Steel 316

• Stainless Steel 316L

• Duplex Stainless Steel

• High-nickel alloys for highly corrosive applications

Typical filtration ratings range from 1 μm to 500 μm, depending on the mesh configuration and process requirements.

Advantage 1: Larger Filtration Area and Higher Flow Capacity

The pleated structure significantly increases the available filtration surface compared with standard cylindrical mesh elements.

A larger filtration area provides several operational benefits:

• Higher dirt-holding capacity

• Lower initial pressure drop

• Increased flow capacity

• Longer operating cycles between cleanings

In many industrial designs, pleated cartridges offer two to five times the effective filtration area of comparable non-pleated elements, allowing higher flow rates without increasing housing size.

This makes them especially suitable for high-flow continuous production systems.

Advantage 2: Excellent Mechanical Strength

Industrial filtration often involves harsh operating conditions, including:

• High pressure

• Pulsating flow

• Mechanical vibration

• Thermal cycling

Stainless steel wire mesh provides excellent structural rigidity that resists deformation far better than polymer-based filter media.

The supporting inner and outer cages further reinforce the cartridge, allowing it to withstand repeated cleaning cycles and elevated differential pressures without compromising filtration performance.

This durability makes pleated wire mesh cartridges ideal for critical process applications.

Advantage 3: High Temperature and Corrosion Resistance

One of the greatest advantages of stainless steel filtration media is its ability to operate under extreme conditions.

Depending on the material grade, these cartridges can tolerate:

• Continuous temperatures exceeding 300°C

• Aggressive chemicals

• Organic solvents

• Steam sterilization

• High-pressure cleaning

• Corrosive process fluids

For highly corrosive environments, SS316L or Duplex stainless steel offers superior resistance to chlorides and many industrial chemicals, extending equipment service life and reducing replacement frequency.

Advantage 4: Washable and Reusable Design

Unlike disposable filter cartridges, stainless steel wire mesh cartridges can be cleaned and reused multiple times.

Common cleaning methods include:

• Reverse flushing

• Ultrasonic cleaning

• Chemical cleaning

• Steam cleaning

• High-pressure water washing

With proper maintenance, a single cartridge can often withstand dozens—or even hundreds—of cleaning cycles, depending on operating conditions and contaminant characteristics.

This significantly reduces:

• Consumable costs

• Waste generation

• Inventory requirements

• Equipment downtime

For facilities focused on sustainability and lifecycle cost reduction, reusability provides a substantial economic advantage.

Advantage 5: Lower Total Cost of Ownership

Although stainless steel pleated cartridges generally have a higher initial purchase price than disposable alternatives, they often provide a much lower total cost of ownership (TCO) over their service life.

Key cost-saving factors include:

• Reduced replacement frequency

• Lower maintenance labor

• Fewer production interruptions

• Longer equipment life

• Lower waste disposal costs

• Improved process reliability

For continuous industrial operations, these long-term savings frequently outweigh the higher upfront investment.

Typical Industrial Applications

Because of their durability and versatility, stainless steel pleated wire mesh filter cartridges are widely used in:

• Chemical processing

• Petrochemical plants

• Oil and gas production

• Water treatment systems

• Food and beverage manufacturing

• Pharmaceutical processing

• Resin and polymer production

• Paint and coating filtration

• Hydraulic and lubrication systems

• Steam and condensate filtration

Their ability to handle demanding process conditions makes them suitable for applications where disposable filters would fail or require frequent replacement.

Selection Considerations

Choosing the right cartridge requires evaluating several engineering factors:

Selecting the appropriate combination ensures optimal filtration performance while maximizing service life.

FAQ

1. What is the main advantage of a pleated wire mesh filter cartridge?

Its pleated design provides a much larger filtration area than standard cylindrical mesh elements, resulting in higher flow capacity, lower pressure drop, and longer service intervals.

2. Can stainless steel filter cartridges be reused?

Yes. They are designed for repeated cleaning using reverse flushing, ultrasonic cleaning, steam sterilization, or chemical washing, making them a cost-effective long-term filtration solution.

3. Which stainless steel grade is most commonly used?

SS316L is widely used because it offers excellent corrosion resistance, good weldability, and reliable performance in chemical, food, pharmaceutical, and water treatment applications.

4. Are pleated wire mesh cartridges suitable for high-temperature processes?

Yes. Stainless steel pleated wire mesh cartridges can withstand elevated temperatures and harsh operating environments, making them ideal for demanding industrial processes where polymer filter media may fail.

Stainless steel pleated wire mesh filter cartridges offer a unique combination of high filtration efficiency, mechanical durability, corrosion resistance, and long-term economic value. Their pleated construction increases filtration area and flow capacity, while the robust stainless steel media enables reliable performance under high pressure, elevated temperatures, and aggressive chemical conditions.

For industries seeking to improve process reliability, reduce maintenance costs, and support sustainable operations, investing in high-quality stainless steel pleated wire mesh filter cartridges is a practical and cost-effective choice. By carefully selecting the appropriate filtration rating, material grade, and cartridge configuration, engineers can optimize system performance and achieve lower lifecycle costs across a wide range of industrial filtration applications.
