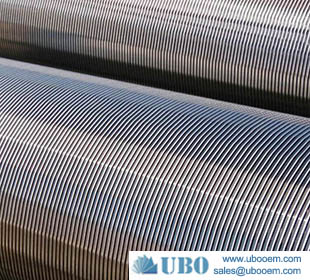

well screen

Product Code: 2182
Category:Wedge Wire Screen Cylinders
Material:wedge wire 304 316L
Properties:Wedge Wire Pipe
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of well screen

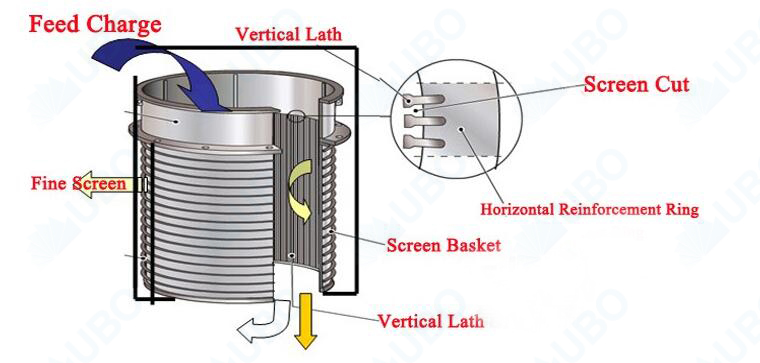

   The welded wedge wire stainless steel water well screen is made up of rods and profile wire.The rod can be round wire,triangular wire or(wedge) trapezoid wire.The profile wire is triangular wire (V-shaped wire).Water well screens have a structure and high open area,as well as accurate slot dimension.At the same time,water well screen have heat-resisting,anti-corrosive,good machine capability,last long,safety and reliability and so on characteristics.It can be used in many kinds of medium filtering.

Application for well screen:

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

Advantages for well screen:

A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.•A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

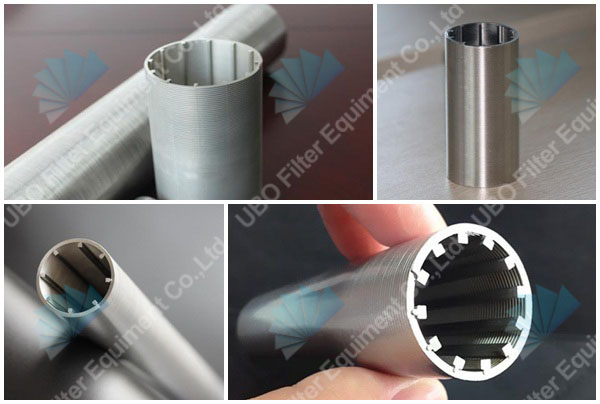

well screen

Specification of the well screen


well screen

size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

Production And Sales of well screen

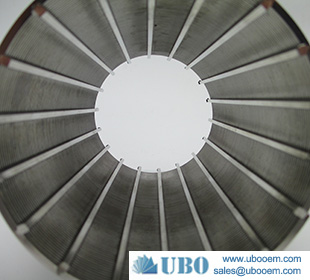

well screen
