welded wedge wire sieve bend

Product Code: 2750
Category:Sieve Bend Screen
Material:stainless steel
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Description of welded wedge wire sieve bend

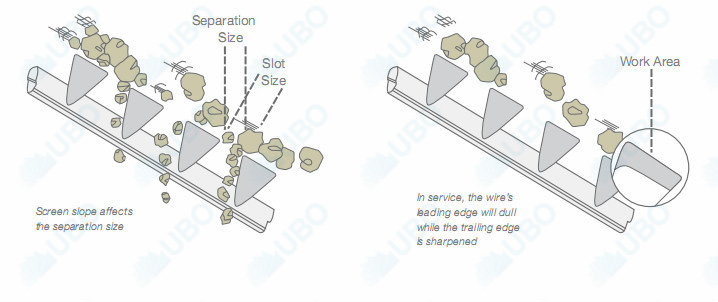

   Slottedwelded wedge wire sieve bend panel consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.
      Meanwhile, the slot can change according to the real condition of the earth.If you are interested in our product ,please contact us, and for more information.

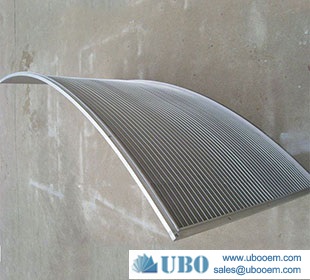

welded wedge wire sieve bend

Usages for welded wedge wire sieve bend:

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment,the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

Characteristic for welded wedge wire sieve bend:

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

Specification of the welded wedge wire sieve bend

welded wedge wire sieve bend

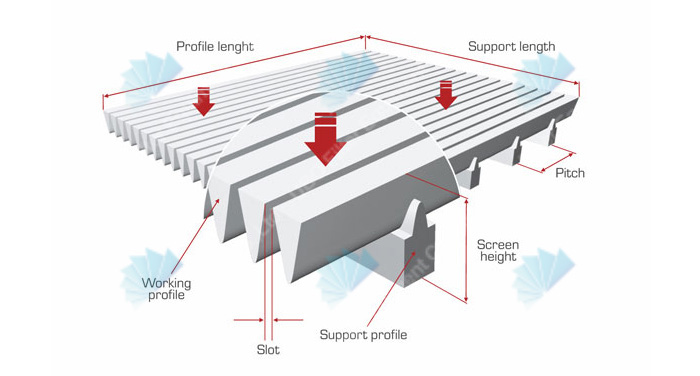

Wedge wire screen panel


stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70

Height : 1.50 2.00 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 1.00 1.80 2.00 3.00 4.00 5.00

Height : 2.00 2.50 3.00 5.00 6.00 8.00


from 1 inch -----45 inch.


lengths up to 6 meters.

Slot size:

0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved request.




Other specifications can be customized according to your requirement

Production And Sales of welded wedge wire sieve bend

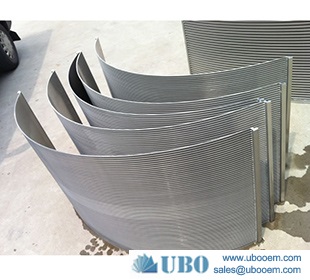

welded wedge wire sieve bendwelded wedge wire sieve bend
