welded wedge wire mesh filter

Product Code: 2791
Category:Wedge Wire Screen Cylinders
Material:SS304
Properties:Wedge Wire Screen
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of welded wedge wire mesh filter


welded wedge wire mesh filter are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.

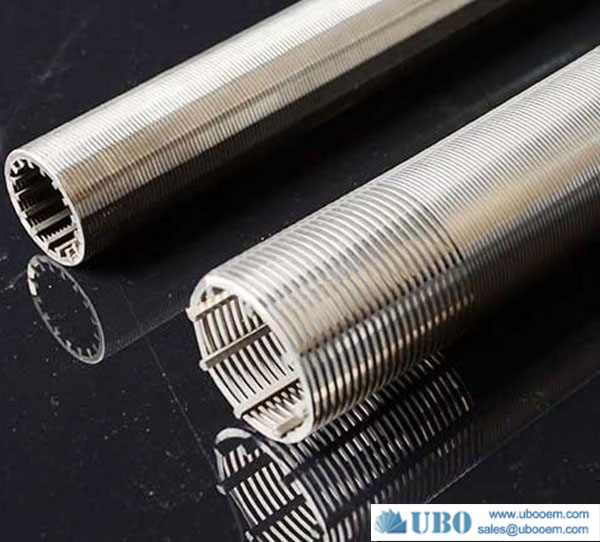

welded wedge wire mesh filter



Application for welded wedge wire mesh filter:



This screen pipe is applied to oil sol ution containing wax oil and asphalt or with high viscosity, it is widely applied in water treatment coarse and precise filtration of various industries, such as, power oil wells, gas wells, chemical, mining, paper making, environmental protection, metallurgy, sand—proof, decorative.



Characteristics for welded wedge wire mesh filter:

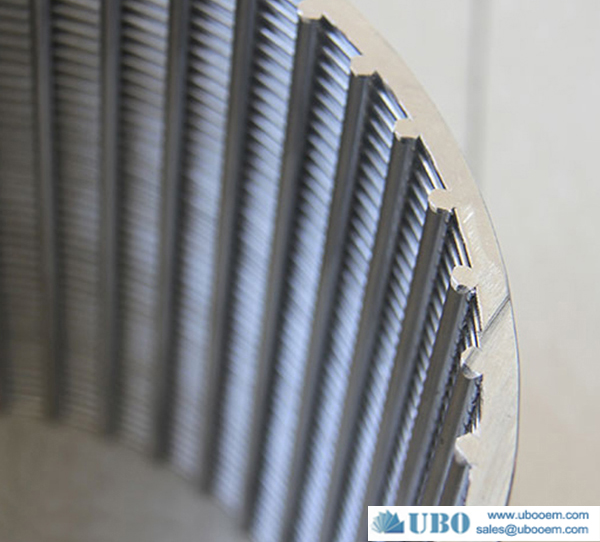

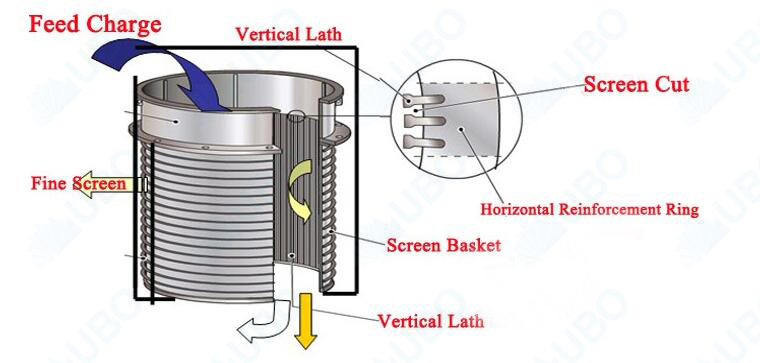

1) They consist of V-shape or wedge shape profile wire and the longitudinal support rods.

2) The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.

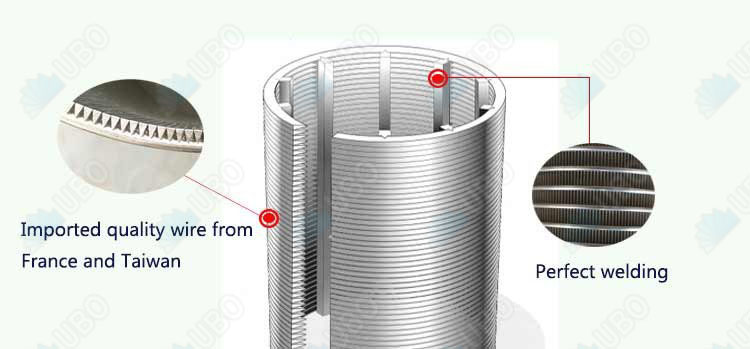

3) Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.



Features for welded wedge wire mesh filter:



1) adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filteration and more effective.

2) wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are gaurenteed.

3) arrangement of the longitudinal support rods and the successive slots provide higher compressive property.

Specification of the welded wedge wire mesh filter


welded wedge wire mesh filter

Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4 117 0.04 395 6 2.2*3.0 3.8mm/22
4 114.3 0.04 395 6 2.3*3.0 3.8mm/22
6 168.3 0.04 252 8 2.3*3.5 3.8mm/32
8 219.1 0.01 399 10.5 3.0*5.0 3.8mm/48
8 219.1 0.02 370 10.5 3.0*5.0 3.8mm/48
8 219.1 0.04 323 10.5 3.0*5.0 3.8mm/48
10 273.1 0.01 206 11 3.0*5.0 3.8mm/50
10 273.1 0.02 191 11 3.0*5.0 3.8mm/50
10 273.1 0.04 167 11 3.0*5.0 3.8mm/50

Production And Sales of welded wedge wire mesh filter

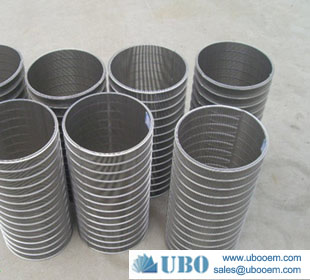

welded wedge wire mesh filter
