wedgewire nozzles

Product Code: 2189
Category:Water Strainer & Nozzle
Material:wedge wire 304 316L
Properties:water strainer&nozzle
Application:ore choosing,petroleum,chemical,water,plastics,food

Email to Us Start Order

Description of wedgewire nozzles

Products Inc manufactures wedgewire screen and fabricated wedgewire screens for a demanding clientele who require high quality, compliance and responsive customer service. Water treatment professionals depend on our knowledge, reliability and quality to enhance their own designs and reputations in the water treatment field to retain treatment media. Our wedgewire nozzles, media retention nozzles, media inlet nozzles, media distributors, resin traps and media air sparge nozzles exemplify our commitment to our high standards, of quality, compliance, responsiveness, and customer service excellence.

For effective treatment processes our wedgewire media retension nozzles and our wedge wire inlet nozzles provide dependable, reliable and long service life.  In common water treatment process for activated carbon absorption, removal of suspended solids, sand or gravel, ion exchange, removal of dissolved minerals salts, and screen services, wedgewire nozzles manufactured by Federal Screen Products Inc. are number one.

Standard nozzles are structurally strong due to their welded fabrication. Available in male or female connection configuration, these nozzles are ideal media retention devices used in flat bottom, false bottom, or reverse suspended round bottom tanks. Wedgewire screen nozzles maximize open areaflow while maintaining a low profile, compact ease of installation, and long screen service life. Get a Quote.

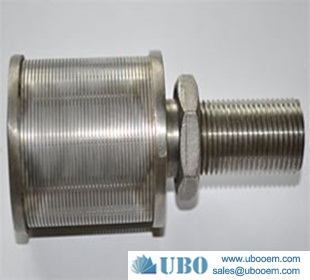

wedgewire nozzles

Characteristics of wedgewire nozzles

1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

Application of wedgewire nozzles

Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

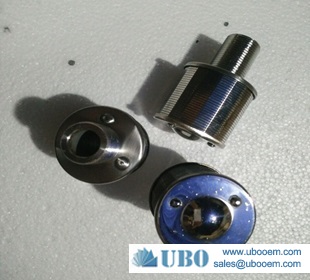

wedgewire nozzles

Ubo Filter Co.,Ltd is specialized in producing and distributing Mine  sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,V shaped wire  welded screens,Spiral screen tube,Wire-wrap screen pipe,Mine screen mesh,Screen cylinders,Vibrating sieve  screen plate.
 Welcome to contact us for more information and cooperation.0086-0311-83289301

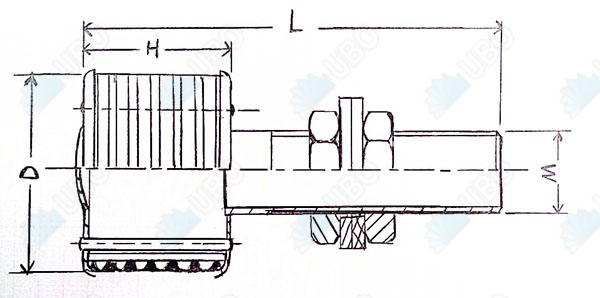

Specification of the wedgewire nozzles

No. (mm)TYPE OD
Support wire Number Filter direction
1 SRD25.4 25.4 18.6 12 FOTI
2 SRD 33 33 24 8 FOTI
3 SRD 37 37 28 8 FOTI
4 SRD 40 40 31 8/10 FOTI/FITO
5 SRD 45 45 36 10/12 FOTI/FITO
6 SRD 48 48 38 12 FOTI/FITO
7 SRD 60 60 51 12 FOTI/FITO
8 SRD 70 70 61 12/18 FOTI/FITO
9 SRD 85 85 76 18 FOTI/FITO
10 SRD 110 110 101 24 FOTI/FITO
11 SRD120 120 111 24 FOTI/FITO
